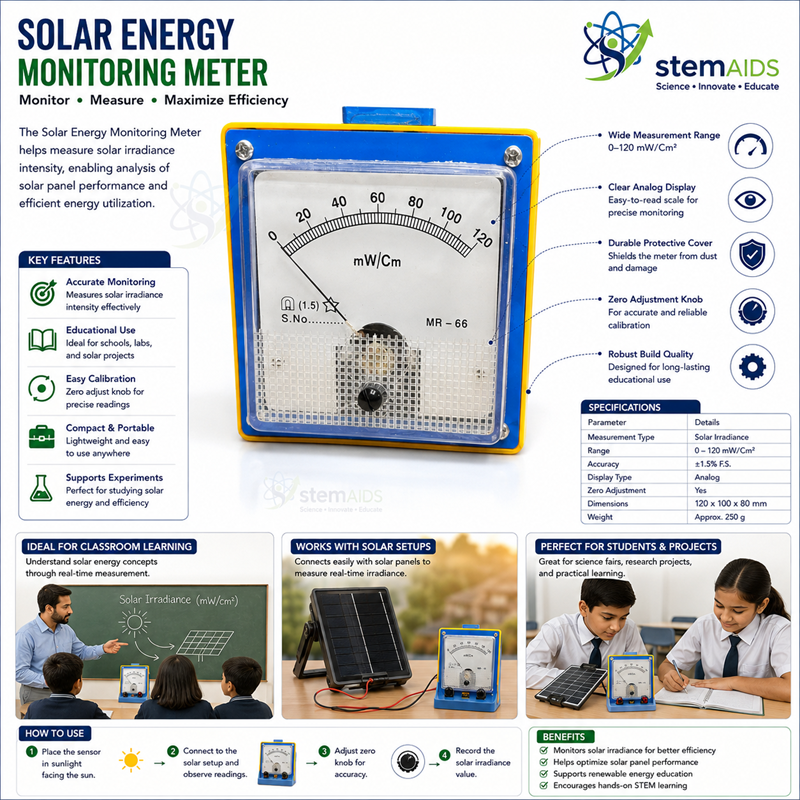

Solar Energy Monitoring Meter

The solar energy monitoring meter is a laboratory instrument used for observing one or more electrical parameters from a compatible photovoltaic system. It is intended for students, teachers, renewable-energy trainees and laboratory technicians who need clear measurement data while investigating solar-panel output, electrical loads and energy-conversion performance.

Product Description

The STEMAids Solar Energy Monitoring Meter supports practical study of photovoltaic energy systems. Depending on the confirmed configuration, it may display solar-panel voltage, current, electrical power, accumulated energy or related operating values. The meter can help learners connect changing illumination and load conditions with measurable electrical output.

The product name does not establish its sensing method, input ranges, display type, data-storage capability or environmental rating. It also does not confirm that the meter measures solar irradiance directly. All measured parameters, accessories, accuracy data and connection requirements must be checked against the approved technical specification.

Browse related laboratory measuring instruments and compatible electrical and electronics equipment.

Key Features

• Single-system monitoring: observes one compatible photovoltaic circuit or experiment setup at a time.
• Solar-performance study: helps relate illumination, panel orientation and load conditions to electrical output.
• Multiple-parameter potential: may display voltage, current, power or energy, subject to the confirmed model.
• Direct data observation: supports numerical recording during renewable-energy experiments.
• Load-comparison value: allows learners to compare solar-panel behaviour under different connected loads.
• Practical STEM application: links photovoltaic conversion with electricity, power and energy concepts.
• Reusable laboratory format: supports demonstrations, student projects and supervised technical training.

Technical Specifications

What’s Included in the Kit

• Solar Energy Monitoring Meter
• Integrated display or indication unit
• External shunt, sensor or interface module
• Test leads, connectors or solar-panel cables
• Operating instructions and experiment guide [confirm]

Applications / Uses

• Monitoring photovoltaic panel voltage and current
• Calculating or displaying electrical power where supported
• Comparing output at different panel angles
• Studying the effect of shading and illumination
• Testing different electrical loads
• Supporting renewable-energy and STEM projects

The meter can complement suitable STEM and renewable-energy learning kits.

How to Use the Solar Energy Monitoring Meter

1. Confirm the solar panel’s expected voltage, current and maximum power.
2. Check that all values are within the meter’s approved input ranges.
3. Disconnect or cover the panel before making circuit connections.
4. Connect the voltage, current and sensor terminals according to the supplied diagram.
5. Observe polarity carefully in DC photovoltaic circuits.
6. Expose the panel to the selected light conditions.
7. Connect the approved load and record each displayed parameter.
8. Isolate the system before changing the panel, load or wiring.

Safety note: Solar panels can generate voltage whenever illuminated. Never short-circuit the panel, exceed the meter’s input ratings or change exposed connections while the system is energized.

Care & Maintenance

• Keep the meter, sensors and connectors clean and dry.
• Inspect test leads and insulation before each experiment.
• Protect the display and sensing accessories from impact and overheating.
• Store the meter away from moisture unless an outdoor protection rating is confirmed.

Why Choose STEMAids

STEMAids supplies STEM kits, laboratory instruments, science models and practical learning equipment for schools and institutions. Its range supports hands-on study of electronics, sensors, energy and applied science. STEMAids also accommodates institutional and project-based requirements. Buyers can review the complete STEMAids educational equipment catalogue when planning a renewable-energy laboratory.

Frequently Asked Questions

What is a solar energy monitoring meter used for?

It is used to observe supported electrical parameters from a photovoltaic panel or solar experiment system.

Does it measure solar irradiance?

Not necessarily. Irradiance measurement requires a suitable calibrated light sensor, which must be confirmed as part of the supplied configuration.

Can it display voltage, current and power?

These functions may be available, but the exact measured parameters and ranges require confirmation.

Can it record accumulated solar energy?

Only models with an energy-integration or logging function can record watt-hours or similar values. That capability is not yet verified.

Can it be connected directly to a solar panel?

Only when the panel output remains within the confirmed input ratings and the approved wiring method is followed.

Is it suitable for school laboratories?

Yes, when used with protected low-voltage solar equipment under supervision and within all confirmed electrical limits.
