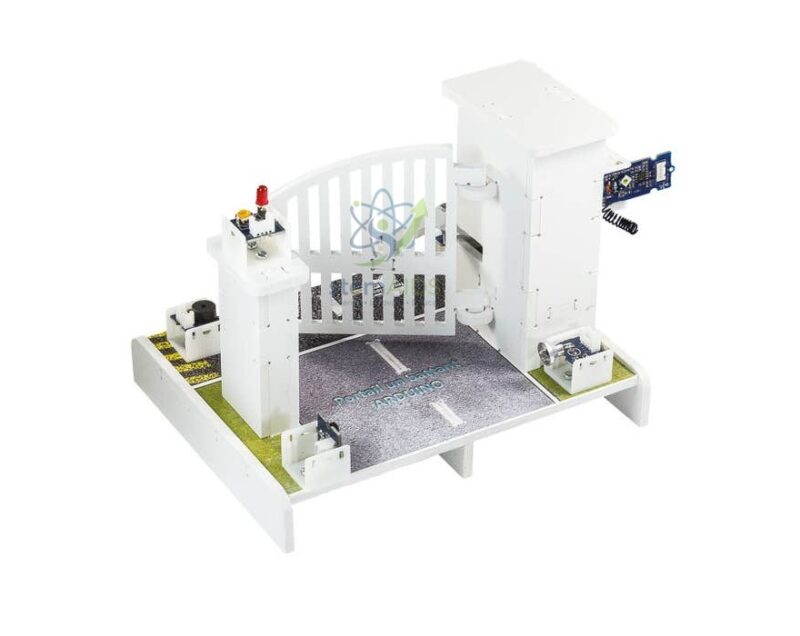

Arduino 2024 portal model with programming interface

Key Features

• Educational Arduino-compatible portal model for STEM and robotics learning.
• Includes Arduino Uno programming interface for classroom coding activities.
• Supports block programming through mBlock5 for beginner-friendly learning.
• Demonstrates automated barrier, gate, and portal operation concepts.
• Uses Grove-compatible electronic modules for modular and simple wiring.
• Includes RF remote control and 433 MHz RF receiver for wireless control activities.
• Infrared barrier helps demonstrate object detection and access-control logic.
• Servo motor enables physical opening and closing movement of the portal mechanism.
• Red Grove LED and Grove buzzer provide visual and sound indication.
• Useful for studying information chains, energy chains, automation, and repairability.
• Suitable for schools, colleges, STEM labs, robotics clubs, and technical workshops.

Product Specifications

Package Contents

• 1 Arduino Uno programming interface
• 1 Grove buzzer
• 1 infrared barrier with Grove transmitter and receiver
• 1 Grove push button
• 1 Grove 433 MHz RF receiver
• 1 433 MHz RF remote control
• 1 servo motor
• 1 set of Grove cables
• 1 set of machined parts
• 1 red Grove LED

Educational Applications

The StemAids Arduino 2024 Portal Model is suitable for practical classroom teaching where students can observe how
programmed logic controls real movement. It is useful for explaining how automatic barriers, parking gates, security
portals, and access-control systems operate.

• Demonstrating automated gate and barrier systems.
• Teaching Arduino-compatible block programming using mBlock5.
• Explaining input, processing, and output in automation systems.
• Studying information chains and energy chains.
• Learning RF remote control operation.
• Understanding infrared object detection.
• Programming servo motor movement.
• Demonstrating buzzer and LED alerts.
• Introducing repairability and fault diagnosis activities.
• Supporting STEM projects, robotics lessons, and coding workshops.

How to Use Arduino 2024 Portal Model

1. Place the Model Safely:
   Keep the portal model on a stable, flat classroom table or laboratory bench.
2. Connect the Arduino Interface:
   Connect the Arduino Uno programming interface to the computer using a suitable USB cable.
3. Connect Grove Modules:
   Attach the Grove buzzer, push button, infrared barrier, RF receiver, red LED, and servo motor using the supplied
   Grove cables.
4. Open mBlock5:
   Launch mBlock5 on the computer and select the compatible Arduino board or device configuration.
5. Create the Program:
   Build a block-based program to control the portal using input from the button, infrared barrier, or RF remote.
6. Upload the Program:
   Upload the program to the Arduino interface and check that the connection is working properly.
7. Test Portal Movement:
   Press the push button or use the RF remote control to activate the servo motor and observe the portal opening
   or closing.
8. Observe Alerts:
   Check the red LED and buzzer response when the programmed condition is triggered.
9. Test Detection Logic:
   Use the infrared barrier to demonstrate object detection and automatic response.
10. Practice Troubleshooting:
    Simulate simple faults, check wiring, review the program logic, and understand how repairability is approached
    in automated systems.

Why Choose StemAids Arduino 2024 Portal Model?

StemAids offers STEM-focused educational products designed for hands-on learning in robotics, coding, electronics,
and automation. This portal model helps students connect programming instructions with real mechanical movement,
making it a strong classroom tool for technology-based education.

• Practical Automation Learning: Demonstrates a real-world gate or barrier control system.
• Arduino-Compatible Platform: Helps learners build confidence with Arduino-style programming.
• Grove-Based Wiring: Simplifies connections and reduces wiring complexity for students.
• Beginner-Friendly Coding: Supports block programming through mBlock5.
• Multi-Concept Teaching: Covers sensors, RF control, LEDs, buzzer output, servo movement, and logic control.
• Repairability Focus: Useful for teaching fault simulation, diagnosis, and system maintenance concepts.
• Classroom Ready: Suitable for demonstrations, lab sessions, STEM workshops, and project-based learning.

E-E-A-T Based Product Information

This product content is written for educational buyers, STEM teachers, robotics trainers, and institutional
procurement teams. The information focuses on practical use, transparent component details, learning outcomes,
safe classroom handling, and clear technical relevance. The product is recommended for supervised educational use
in schools, colleges, STEM labs, robotics clubs, and technical training centers.

SEO Product Summary

The StemAids Arduino 2024 Portal Model with Programming Interface is an Arduino-compatible STEM
automation model for learning portal control, barrier movement, RF remote operation, infrared detection, servo motor
programming, LED indication, buzzer alerts, mBlock5 block coding, repairability, and information-chain studies. It
is suitable for schools, colleges, robotics labs, coding workshops, STEM trainers, and educational technology
programs.

Frequently Asked Questions

1. What is the StemAids Arduino 2024 Portal Model used for?

It is used to teach automation, Arduino-compatible programming, RF control, infrared detection, servo motor movement,
LED indication, buzzer alerts, and repairability concepts through a practical portal or barrier model.

2. Does this model include a programming interface?

Yes. This version includes an Arduino Uno programming interface for coding and classroom demonstration activities.

3. Which programming software can be used with this model?

The model supports block programming through mBlock5, making it suitable for beginners and classroom-based coding
sessions.

4. Is this model compatible with Arduino and Grove?

Yes. The model is designed around Arduino-compatible programming and Grove-compatible electronic modules.

5. What does the RF remote control do?

The RF remote control sends a wireless command to the 433 MHz RF receiver, allowing students to simulate remote
operation of an automated portal or gate system.

6. What is the role of the infrared barrier?

The infrared barrier helps detect object presence or interruption, allowing students to understand detection-based
automation logic.

7. What does the servo motor control?

The servo motor controls the physical movement of the portal mechanism, such as opening or closing the barrier.

8. Is this product suitable for school STEM labs?

Yes. It is suitable for school STEM labs, technology classes, robotics clubs, coding workshops, and practical
electronics demonstrations.

9. Can students learn troubleshooting with this model?

Yes. The model supports repairability-based learning by allowing students to simulate malfunctions, check wiring,
inspect program logic, and understand fault diagnosis.

10. Why choose StemAids Arduino 2024 Portal Model?

StemAids provides STEM-focused educational products for practical learning. This model combines programming,
electronics, sensors, RF control, actuator movement, and troubleshooting concepts in one hands-on automation kit.
