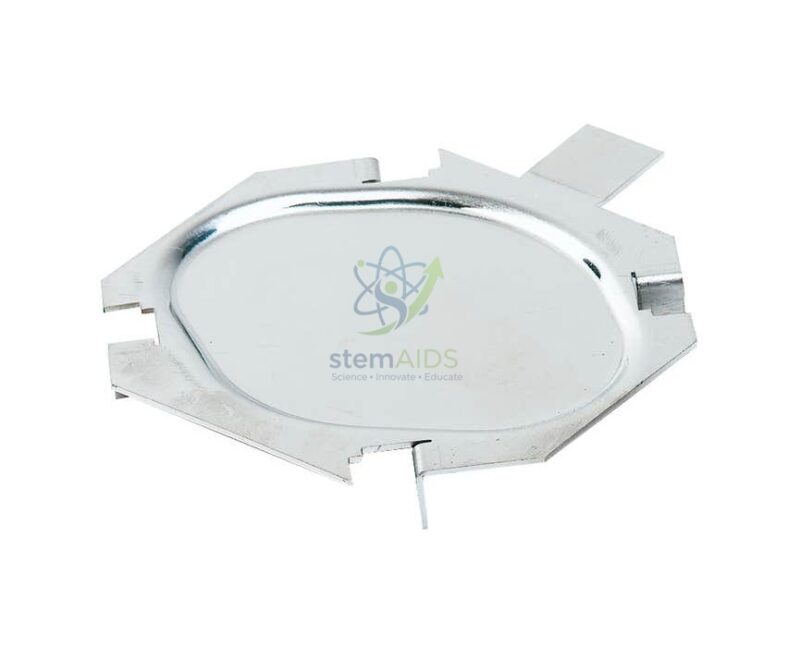

Quick Answer: The Serenit reaction plate, listed as ‘Reaction plate for Sérénit electric burner’, is a shallow, dished metal plate that rests over the burner’s heating element. The listing photo shows a bright metal dish with an angular rim, bent locating tabs and a flat handle tab, used to heat small quantities of solids in full view of a class.
A Shallow Dish That Sits on the Heat
On a gas burner, a solid is usually heated in a crucible on a pipe-clay triangle or in a test tube held in the flame. The Sérénit electric burner has a flat spiral element instead of a flame, and this plate is made to rest over it. In the photo the plate has a shallow circular well pressed into its centre, a rim cut into straight segments, small tabs bent downwards to locate it on the burner, and a flat tab projecting from one side for lifting.
Because the well is open and shallow, everyone around the bench can see what happens to the sample: blue crystals turning white as their water of crystallisation is driven off, a solid melting and then charring, or a powder changing colour as it decomposes. Thin metal passes heat into the sample quickly, so changes begin soon after the burner is switched on.
The reaction plate has a different job from the solid fuel burning plate, which holds fuels such as charcoal while they burn. This one is for heating and decomposing small samples to watch a chemical change. Anything that releases irritant or toxic gas belongs in a fume cupboard, whichever plate is used.
Applications
- Heating blue hydrated copper(II) sulfate until it turns white, then adding a drop of water to reverse the change
- Comparing how sugar, salt and candle wax behave when heated: melting, charring or no visible change
- Thermal decomposition of green copper(II) carbonate to black copper(II) oxide as a class demonstration
- Drying a small portion of a damp, heat-stable solid before weighing
Specifications
| Item | Reaction plate for the Sérénit electric burner |
| Form | Shallow dished well with a segmented rim (photo) |
| Fitting | Bent tabs that locate the plate on the burner (photo) |
| Handling | Flat projecting tab for lifting with tongs (photo) |
| Finish | Bright metal, as photographed |
Care & Handling
- Seat the Sérénit reaction plate on the burner while both are cold, and check that the tabs hold it level.
- Use small amounts; the tip of a spatula of solid is enough to see a change.
- Lift the plate only with tongs by its handle tab, and set it down on a heat-resistant mat to cool.
- Scrape out residues once cold and wash the plate before the next class; soak stubborn deposits rather than scouring hard.
Why Choose LabEquip
Teachers who have moved to Sérénit electric burners but still want to show dehydration and thermal decomposition reactions buy this plate. LabEquip includes it in the chemistry range, and you can match plate numbers to your burners through the contact page.
Related Products
- Replacement Spare Parts For Sérénit Electric Spout: A replacement parts set for the Sérénit electric burner, including a spiral element and fittings.
- Solid Fuel Burning Plate: A solid fuel burning plate for watching charcoal, wood and wax samples burn over a burner.
- Ecoflam Pastilles (Set of 41): Ecoflam solid fuel pastilles for use on electric burners, a different demonstration on the same burner type.
- Tongs, Crucible, Straight: Straight crucible tongs for lifting the hot plate and small dishes off the burner.
Frequently Asked Questions
What can be heated on the Serenit reaction plate?
Small quantities of solids, so the whole class can watch the change: blue copper(II) sulfate turning white, a solid melting and then charring, or a powder changing colour as it decomposes. The shallow, open dish in the listing photo keeps the sample in full view above the burner element.
Can liquids be heated on the reaction plate?
The shallow dish is made for small amounts of solid. A few drops evaporate quickly, but larger volumes can spit or spill onto the electric element. Heat liquids in a test tube, beaker or evaporating dish on a suitable support instead.
Which burner is the reaction plate made for?
It is listed for the Sérénit electric burner, and its bent tabs, shown in the photo, locate it over that burner’s spiral element. Other burners have different tops, so the plate is meant for the Sérénit model.
How is the reaction plate different from the solid fuel burning plate?
The reaction plate is a shallow dish for heating small samples to watch a chemical or physical change. The solid fuel burning plate is a flat disc with a handle used to hold fuels such as charcoal or wood shavings in the heat so they can be seen to ignite and burn.
Why does blue copper sulfate turn white when heated on the plate?
Blue copper(II) sulfate crystals contain water of crystallisation. Heating drives the water off, leaving white anhydrous copper(II) sulfate. Adding a few drops of water after cooling turns it blue again and gives out heat, showing the change is reversible.
How should the reaction plate be cleaned?
Let it cool fully, then lift it off the burner by its tab with tongs. Scrape off loose residue, wash in warm water with a soft brush and dry it before refitting. Do not cool a hot plate in water, and keep cleaning liquids away from the electric element.
