Digital water bath with magnetic stirring

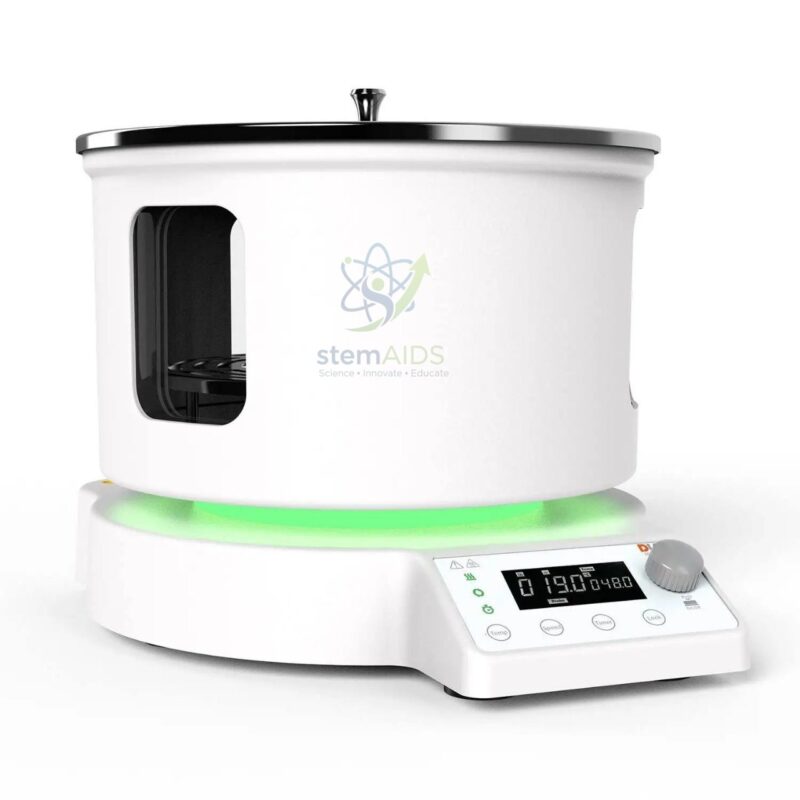

The StemAids Digital Water Bath with Magnetic Stirring MS-h320-V5 – DLAB is a laboratory heating and stirring bath designed for controlled sample heating, liquid mixing, temperature maintenance, and uniform thermal processing. With digital LCD control, magnetic stirring, and a 5 L bath capacity, it is suitable for research laboratories, educational institutions, biotechnology labs, pharmaceutical laboratories, quality control departments, and industrial testing applications.

Product Description

The MS-h320-V5 combines water bath heating and magnetic stirring in one compact laboratory instrument. It helps maintain uniform temperature distribution by stirring the bath medium while also supporting sample mixing inside compatible vessels. This makes it useful for reagent warming, solution preparation, sample incubation, chemical processing, enzymatic reactions, and controlled heating applications.

The unit features a high borosilicate glass bath liner with a stainless steel base, allowing users to observe the reaction or sample condition during operation. Its LCD display shows temperature, speed, and time parameters clearly, while the safety lock, hot warning, over-temperature protection, dry-burning protection, and timer function support safer laboratory use.

Product Specifications

Key Features

• Digital LCD display for temperature, speed, and time monitoring
• 5 L magnetic stirring bath capacity for routine laboratory workflows
• High borosilicate glass liner for visibility and thermal resistance
• Stainless steel base for durability and easy cleaning
• Room temperature to 220°C heating range for broad laboratory use
• 100–1500 rpm magnetic stirring range for controlled liquid mixing
• PT1000 external temperature sensor support for accurate temperature monitoring
• Timer function from 1 minute to 99 hours 59 minutes
• Hot warning, dry-burning protection, overcurrent protection, and over-temperature protection
• Brushless DC motor for low-noise and maintenance-friendly operation

How to Use

1. Place the StemAids MS-h320-V5 digital water bath on a clean, dry, stable, and heat-resistant laboratory bench.
2. Add the required bath medium, such as water or compatible oil, according to the laboratory procedure and equipment instructions.
3. Place the magnetic stir bar in the bath medium or compatible sample vessel as required.
4. Connect the PT1000 temperature sensor if external sample temperature monitoring is required.
5. Switch on the unit and set the required temperature, stirring speed, and timer using the LCD control panel.
6. Allow the bath medium to reach the selected temperature before placing temperature-sensitive samples.
7. Place compatible flasks, beakers, bottles, or vessels carefully into the bath area.
8. Start magnetic stirring and monitor the sample or reaction through the transparent bath liner.
9. After the process is complete, switch off heating and allow the bath to cool before removing vessels or draining the medium.
10. Clean the bath liner and surrounding surface after use, then store the unit in a dry laboratory area.

Applications

• Sample heating and liquid mixing
• Reagent warming and solution preparation
• Water bath and oil bath laboratory workflows
• Chemical reaction temperature control
• Enzyme reactions and biochemical sample preparation
• Pharmaceutical and quality control testing
• Research and analytical laboratory applications
• Biotechnology and microbiology workflows
• Educational laboratory demonstrations and practical training

Safety and Handling Guidelines

• Use the unit only on a stable, level, dry, and heat-resistant surface.
• Do not operate the bath without sufficient water or compatible heating medium.
• Do not touch the bath liner, vessels, or heating surfaces when hot.
• Use heat-resistant gloves when handling heated vessels or samples.
• Do not exceed the recommended bath capacity or compatible vessel size.
• Keep electrical parts away from water splashes and spills.
• Use the correct voltage and frequency as per laboratory power supply standards.
• Allow the unit to cool before cleaning, draining, or moving.
• Follow laboratory chemical safety rules when heating volatile or reactive substances.

FAQ

1. What is the StemAids Digital Water Bath with Magnetic Stirring MS-h320-V5 used for?

It is used for controlled heating, magnetic stirring, reagent warming, solution preparation, sample incubation, and temperature-based laboratory workflows.

2. What is the maximum stirring capacity of the MS-h320-V5?

The maximum stirring quantity is 5 L.

3. What is the speed range of this magnetic stirring bath?

The stirring speed range is 100–1500 rpm with ±10 rpm accuracy.

4. What is the maximum heating temperature?

The heating temperature range is from room temperature up to 220°C.

5. Can this product be used as both a water bath and oil bath?

Yes, it is designed for compatible water and oil bath applications, depending on the laboratory method and safety requirements.

6. Does the unit have safety protection?

Yes, it includes safety features such as dry-burning protection, overcurrent protection, ground fault protection, over-temperature protection, safety lock, and hot warning.

7. What is the benefit of the PT1000 sensor?

The PT1000 sensor helps monitor the sample or bath temperature more accurately during controlled heating applications.

8. Is this suitable for educational laboratories?

Yes, it is suitable for college, university, biotechnology, chemistry, pharmaceutical, research, and teaching laboratories.

9. How should the bath be cleaned after use?

After switching off the unit and allowing it to cool, remove the bath medium safely, wipe the liner with a clean cloth, and keep the unit dry before storage.

Why Choose StemAids?

StemAids laboratory equipment is selected for practical workflows, reliable operation, and compatibility with research and educational laboratory needs. The StemAids Digital Water Bath with Magnetic Stirring MS-h320-V5 – DLAB supports uniform heating, controlled stirring, accurate temperature monitoring, and safer sample handling for research, pharmaceutical, quality control, biotechnology, industrial, and educational laboratory applications.
