Solenoid Working Model

The Solenoid Working Model is a physics teaching apparatus used for demonstrating the magnetic effect of electric current. It helps students, physics teachers and laboratory instructors observe how a current-carrying coil produces a magnetic field and may attract or move a ferromagnetic core through one supervised experimental setup.

Product Description

The STEMAids Solenoid Working Model provides a practical representation of a wire coil connected to a low-voltage electrical source. When current flows through the coil, the magnetic fields produced by its individual turns combine to form a stronger field along the coil’s central axis.

Depending on the confirmed design, the apparatus may contain a removable iron core, sliding plunger, compass, magnetic field indicator or load mechanism. It can support lessons on electromagnets, magnetic polarity, current direction and electromechanical actuation. The exact operating configuration and electrical limits must be confirmed from the current STEMAids documentation.

Key Features

• Demonstrates a current-produced magnetic field: Shows that an energised coil behaves as an electromagnet.
• Introduces solenoid polarity: Supports identification of the north and south ends using the current direction.
• Shows core interaction: May demonstrate attraction or movement of a ferromagnetic core where included.
• Connects electricity with motion: Explains the operating principle behind relays, valves, locks and electromagnetic actuators.
• Supports variable-condition experiments: Allows comparison of magnetic response when current, core position or coil configuration is changed, subject to the verified design.
• Encourages circuit analysis: Helps learners identify the coil, switch, power source and output mechanism.
• Suitable for supervised instruction: Supports physics laboratories, STEM activities and science exhibitions.

Technical Specifications

What’s Included in the Kit

• Wire-wound solenoid coil assembly
• Iron core, rod or movable plunger
• Base, frame and coil supports
• Switch, terminals and connecting leads
• Power supply or battery accessory
• Experiment instructions and circuit diagram

Applications and Uses

• Demonstrating magnetic fields around a current-carrying coil.
• Identifying solenoid north and south poles.
• Comparing the magnetic effect with and without an iron core.
• Investigating the effect of current on magnetic strength.
• Introducing electromagnetic plungers and linear actuators.
• Explaining relays, electric bells, solenoid valves and magnetic locks.
• Supporting electromagnetism practicals and exhibitions.

How to Use the Solenoid Working Model

1. Place the apparatus on a stable, dry laboratory surface.
2. Inspect the coil, insulation, terminals, switch and connecting leads.
3. Insert or position the supplied core according to the instructions.
4. Connect only the specified low-voltage power source.
5. Energise the coil briefly and observe the magnetic or mechanical response.
6. Use a compass or approved indicator to identify field direction where applicable.
7. Reverse the current connections to investigate the change in polarity.
8. Switch off and allow the coil to cool before repeating the experiment.

Safety and handling: Do not connect the coil directly to an unverified power source. Solenoid coils can heat rapidly under continuous current. Observe the confirmed duty cycle, disconnect power before adjustments and keep electronic devices or magnetic storage media away from a strong energised coil.

Care & Maintenance

• Disconnect the power supply before cleaning or changing connections.
• Inspect coil insulation and leads regularly for heat or abrasion damage.
• Keep the core clean and free from rust, dirt or deformation.
• Store the apparatus in a dry cabinet after the coil has cooled completely.

Why Choose STEMAids

STEMAids develops educational models, electronics kits and laboratory resources for practical science instruction. Buyers can explore related physics laboratory products, educational science models, STEM learning kits and the complete scientific and educational product range. Request the current coil rating, core mechanism, operating voltage, duty cycle and packing list before procurement.

Frequently Asked Questions

What is a Solenoid Working Model used for?

It is used to demonstrate how electric current passing through a coil produces a magnetic field and can generate electromagnetic force or linear motion.

What is a solenoid?

A solenoid is a coil of wire, commonly cylindrical, that produces a magnetic field when current flows through it.

Why is an iron core inserted into a solenoid?

A suitable ferromagnetic core can increase the magnetic field and may act as a movable plunger in an electromechanical system.

What happens when the current direction is reversed?

The direction of the solenoid’s magnetic field reverses, interchanging its north and south poles.

What voltage does the model require?

The electrical rating is not publicly verified. Use only the voltage and current limits specified for the supplied apparatus.

Can the solenoid remain switched on continuously?

Not unless continuous operation is explicitly permitted. Current can heat the coil, so the verified duty cycle must be followed.

Explore more physics laboratory apparatus from STEMAids for electricity, magnetism and electromagnetic demonstrations.

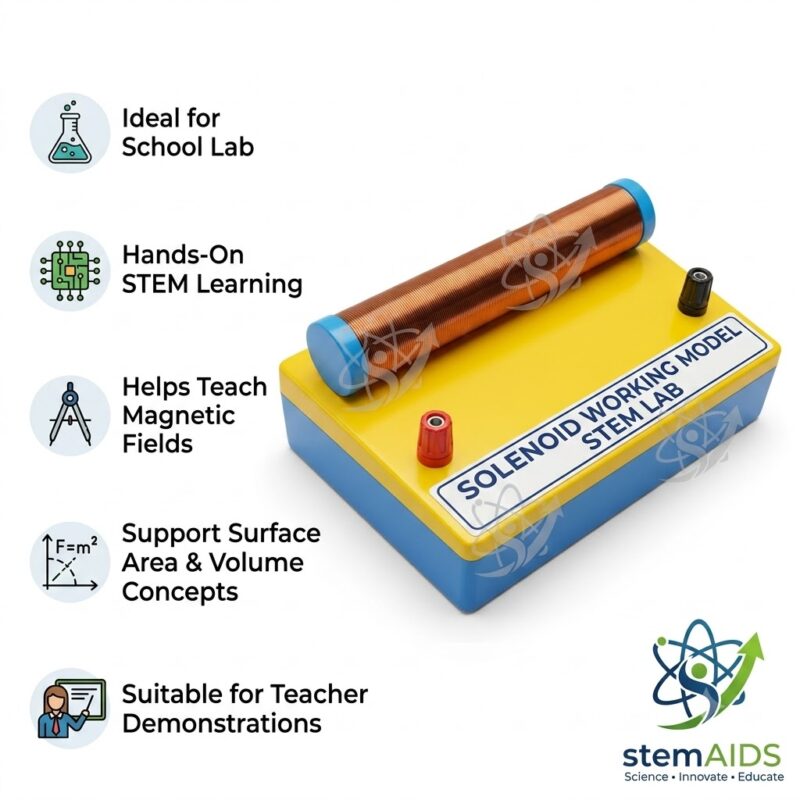

Recommended primary image ALT text: Solenoid Working Model with wire coil, iron core, switch and electrical terminals.
