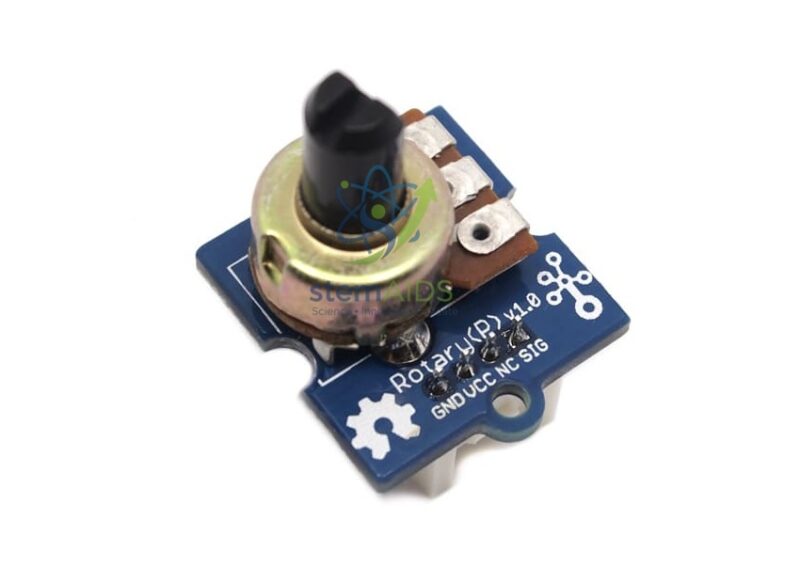

The StemAids Grove Rotary Potentiometer Module is a compact analog input module designed for STEM education, Arduino projects, Raspberry Pi experiments, robotics kits, IoT models, automation demonstrations, and electronics laboratory learning. It allows students to control values by rotating a knob, making it useful for brightness control, motor speed control, volume-style input, menu selection, sensor calibration, and user-interface projects.
This Grove-compatible rotary module is commonly known as a rotary angle sensor or rotary potentiometer. It produces an analog output that changes as the knob is rotated, helping learners understand analog input, voltage variation, resistance change, and microcontroller-based control.
The StemAids Grove Rotary Potentiometer Module is suitable for school STEM labs, Arduino learning kits, Raspberry Pi classrooms, robotics labs, IoT projects, electronics workshops, smart automation models, and analog-input experiments.
Key Features
- Grove-compatible rotary potentiometer module for STEM and electronics learning
- Provides analog output based on knob rotation
- Useful for brightness control, motor speed control, menu input, and calibration
- Common 10 kΩ potentiometer value for microcontroller projects
- Approx. 300-degree rotary angle for smooth value adjustment
- Simple Grove 4-pin interface for clean and beginner-friendly wiring
- Suitable for Arduino, Raspberry Pi, robotics, IoT, and automation projects
- Ideal for school labs, electronics labs, robotics labs, and training centers
Product Specifications
| Brand | StemAids |
|---|---|
| Product Name | Grove Rotary Potentiometer Module |
| Product Type | Grove-compatible rotary potentiometer / rotary angle sensor |
| Sensor Type | Analog rotary input module |
| Output Type | Analog voltage output |
| Resistance Value | 10 kΩ |
| Angular Range | 0° to 300° |
| Operating Voltage | 5V typical |
| Voltage Range | 4.75V to 5.25V typical documented range |
| Signal Output | 0 to Vcc analog output |
| Interface Type | Grove 4-pin interface |
| Common Connection Port | Analog input port, such as A0 |
| Module Dimensions | Approx. 19 mm x 19 mm x 30.1 mm |
| Compatible Platforms | Arduino, Raspberry Pi with Grove interface, and Grove-compatible boards |
| Applications | Brightness control, speed control, menu input, calibration, robotics, IoT, and STEM projects |
| Recommended Users | Students, teachers, electronics learners, robotics trainers, makers, and STEM labs |
How to Use the Grove Rotary Potentiometer Module
- Connect the StemAids Grove Rotary Potentiometer Module to a Grove Base Shield, Grove Base Hat, or compatible analog input interface.
- Use a Grove cable to connect the module to an analog input port, such as A0.
- Open Arduino IDE, Python environment, or another compatible programming platform.
- Set the connected analog input pin in your program.
- Read the analog value from the potentiometer module.
- Rotate the knob and observe how the value changes.
- Use the changing analog value to control LED brightness, motor speed, fan speed, display numbers, servo angle, or project settings.
- Set minimum and maximum limits in code according to the project requirement.
- Test the response carefully before connecting the module to motors, relays, or automation outputs.
Educational Benefits
The StemAids Grove Rotary Potentiometer Module helps students understand analog input, variable resistance, voltage division, sensor value mapping, microcontroller programming, and user-interface design. It provides a simple hands-on method for learning how a physical knob can control software values and electronic outputs.
Applications
- Arduino analog input experiments
- Raspberry Pi control projects with Grove interface
- LED brightness control models
- Mini fan or motor speed control demonstrations
- Servo angle adjustment projects
- LCD menu selection and value-setting projects
- Robotics speed or mode control
- IoT threshold-setting models
- Sensor calibration activities
- STEM classroom electronics experiments
Important Use Note
The StemAids Grove Rotary Potentiometer Module is intended for educational analog input and control projects. When using it with motors, relays, or external loads, connect those loads through suitable driver circuits rather than directly through the potentiometer.
Why Choose StemAids?
StemAids provides practical STEM, robotics, electronics, and automation learning modules for schools, colleges, training centers, and technical laboratories. The StemAids Grove Rotary Potentiometer Module is designed to make analog-control learning simple, visual, and classroom-friendly. It is a useful module for institutions building Arduino labs, robotics labs, IoT learning spaces, electronics project kits, and smart automation training setups.
FAQ
Q1. What is the StemAids Grove Rotary Potentiometer Module used for?
It is used for analog input control, brightness adjustment, motor-speed control, menu selection, sensor calibration, and robotics or IoT project interaction.
Q2. Is this rotary potentiometer compatible with Arduino?
Yes, it can be used with Arduino through a Grove Base Shield or compatible analog input connection.
Q3. Can this module be used with Raspberry Pi?
Yes, it can be used with Raspberry Pi when connected through compatible Grove interface hardware and suitable user-written code.
Q4. What type of output does the module provide?
The module provides analog voltage output that changes as the knob is rotated.
Q5. What is the common resistance value?
The commonly documented Grove rotary potentiometer uses a 10 kΩ resistance value.
Q6. What is the rotation angle?
The commonly documented Grove rotary potentiometer has a 0° to 300° angular range.
Q7. Does this module require soldering?
No, when used with Grove-compatible boards, the Grove connector allows simple plug-and-play wiring.
Q8. What projects can students make with this potentiometer module?
Students can make LED dimmers, fan speed controllers, servo angle controllers, LCD menu selectors, robotics speed controls, IoT threshold setters, and sensor calibration models.
