Series & Parallel Circuit Kit

Original price was: ₹550.00.Current price is: ₹265.00.

Quick Answer: The Series and Parallel Circuit Kit is a school electricity board for building and comparing two basic circuit arrangements: bulbs connected one after another in series, and bulbs on separate branches in parallel. Students switch bulbs on and off, compare brightness and see what happens to the rest of the circuit when one bulb is removed.

Two Circuits Side by Side

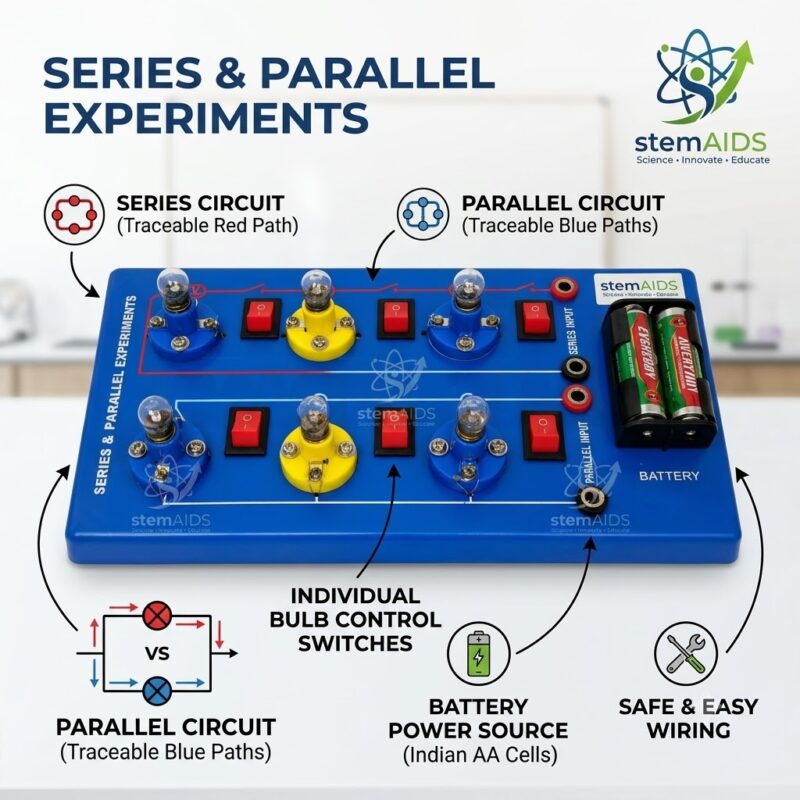

The listing image shows this series and parallel circuit kit as a board with bulb holders, individual switches and a holder for AA cells, with the series path and the parallel branches marked so that students can trace each route. Having both arrangements on one board makes the comparison quick: the class changes nothing except the way the bulbs are connected.

In the series circuit there is a single path, so the same current passes through every bulb and the battery voltage is shared between them. Adding a bulb makes all of them dimmer, and unscrewing one breaks the path so every bulb goes out. In the parallel circuit each bulb sits on its own branch across the full battery voltage, so each glows as brightly as a single bulb would, and removing one leaves the others lit. The trade-off is a larger total current and cells that run down sooner.

These observations lead directly to the rules students must learn: currents add in parallel branches, voltages add around a series loop, and household wiring is parallel so that each appliance can be switched independently. Meters are not assumed to be included, so confirm whether you need an ammeter and voltmeter with the order.

Applications

  • Comparing bulb brightness in series and parallel arrangements
  • Showing the effect of a broken or removed bulb on each circuit
  • Measuring current and voltage in each branch when meters are added
  • Explaining why household wiring uses parallel circuits
  • Fault-finding exercises in which students locate a loose connection or failed bulb

Specifications

Item Circuit board for series and parallel connections
Loads Miniature bulbs in holders
Control Individual switches, as shown in the listing image
Power Holder for AA cells
Circuit paths Series and parallel routes marked for tracing
Bulb rating and cells supplied Confirm at enquiry

Care & Handling

  • Remove the cells after each lesson; flat or leaking cells corrode the holder contacts.
  • Use only the cell type and number the board is designed for, so the bulbs are not overdriven.
  • Tighten loose bulbs by hand only and replace blackened bulbs with ones of the same rating.
  • Keep the board dry and store it flat so that the wiring and switches are not strained.

Why Choose LabEquip

Science teachers from upper primary to Class 10 buy this board because the series and parallel comparison appears in every school electricity syllabus. It is one of the electricity experiment kits for schools listed in the LabEquip STEM kits range, and students who master it often move on to the Arduino Learning Kit to control circuits with code. Request class sets through the contact page.

Frequently Asked Questions

Why are bulbs dimmer in a series circuit?

In series the battery voltage is shared between the bulbs and the total resistance is higher, so less current flows. Each bulb receives only part of the voltage and glows less brightly than it would on its own.

Why do the other bulbs stay on when one is removed from the parallel circuit?

Each bulb in a parallel circuit has its own path to the battery. Removing one bulb breaks only that branch, so current still flows through the others at full voltage.

Which circuit drains the battery faster?

The parallel circuit. Each branch draws its own current and the currents add up, so the battery supplies more current in total and runs down sooner than it would with the same bulbs in series.

Is household wiring series or parallel?

Parallel. Each appliance receives the full mains voltage and can be switched on or off without affecting the others. A series arrangement would make every appliance depend on all the rest.

Can students measure current with this kit?

Yes, if an ammeter is connected in series with the part of the circuit being measured and a voltmeter across a bulb. Measured values confirm that currents add in parallel and voltages add in series. Meters may need to be ordered separately.

Is the kit safe for young students?

It runs on low-voltage cells, so the circuit itself carries no shock risk worth worrying about. Students should still never connect a wire straight across the cell terminals, because a short circuit heats the wire and drains the cell quickly.
