Conservation of Momentum Model

Original price was: ₹1,900.00.Current price is: ₹1,890.00.

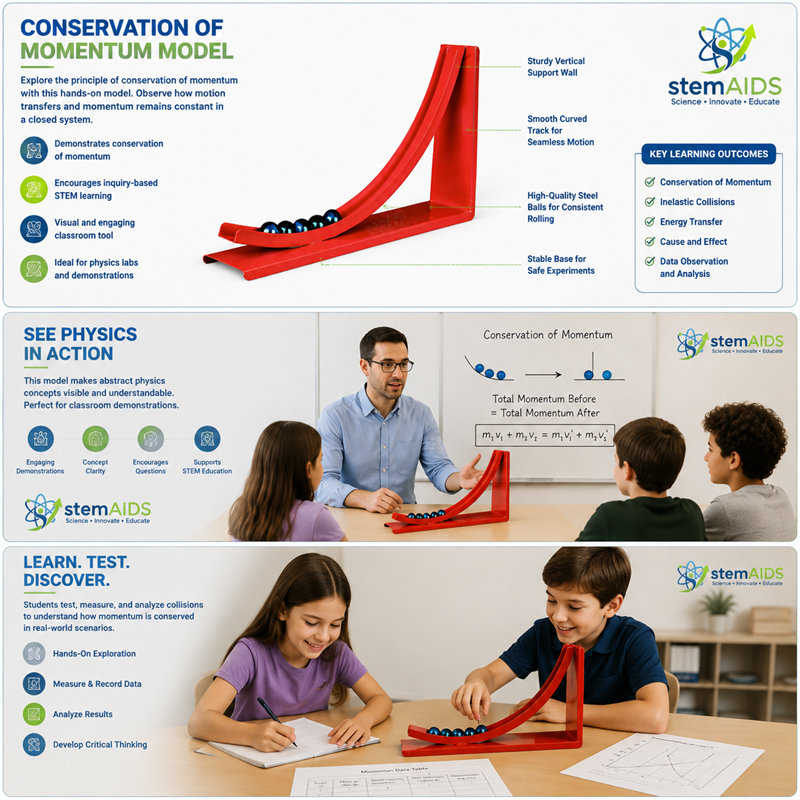

Quick Answer: The Conservation of Momentum Model is a ball-and-track demonstration of momentum transfer in collisions. The listing image shows a curved red track rising from a flat section on which a row of steel balls rests; a ball released on the curve rolls down, strikes the row and sends the ball at the far end away while the others stay nearly still.

Momentum Passing Along a Row of Balls

Momentum is mass multiplied by velocity, and in any collision where no outside force acts, the total momentum before equals the total momentum after. On the conservation of momentum model the incoming ball stops almost dead when it hits the row, and the ball at the far end leaves at nearly the same speed. The balls between them barely move, yet the momentum has passed right through them.

Steel balls are used because their collisions are close to elastic, meaning very little kinetic energy is lost. When both momentum and kinetic energy are conserved and the balls are identical, the only possible outcome is for one ball to leave for every ball that arrives. Releasing two touching balls together sends two away from the far end, which rules out the tempting idea that one ball could leave at double speed.

This is the same physics as the familiar Newton’s cradle, laid out along a track so the path is easy to follow and the release height sets the incoming speed. Track length and the number of balls supplied should be confirmed when ordering.

Care & Handling

  • Level the flat section so the resting balls stay in contact without rolling apart.
  • Keep the balls clean and dry; dirt or rust between them absorbs energy and spoils the transfer.
  • Catch the departing ball with a soft stop so it does not fall from the bench.
  • Count the balls back into their box after the lesson, since a missing ball changes the demonstration.

Specifications

Apparatus type Collision and momentum transfer track
Track Curved ramp joining a flat run, as pictured
Colliding bodies Row of identical steel balls
Collision type Near-elastic, ball against ball
Speed control Release height on the curved section
Number of balls and track length Confirm at enquiry

Applications

  • Demonstrating conservation of momentum in one dimension
  • Distinguishing elastic from inelastic collisions
  • Explaining why one ball in gives one ball out
  • Discussing momentum transfer in snooker, car crashes and railway buffers

Why Choose LabEquip

Physics teachers buy this model when introducing momentum, because it shows conservation in a way pupils can predict and then check. LabEquip provides it in the STEM kits range, and the Newton’s Second Law Demonstration Apparatus complements it for the link between force and change of momentum. Contact us on the contact page.

Frequently Asked Questions

Why does only one ball leave the end of the row?

For identical balls in an elastic collision, conserving both momentum and kinetic energy leaves only one outcome: the same number of balls leaves as arrives, at the same speed. Any other combination would break one of the two conservation laws.

Is kinetic energy conserved as well as momentum?

Momentum is always conserved when no outside force acts. Kinetic energy is conserved only in perfectly elastic collisions. Steel balls come close, but a little energy is lost as sound and heat, so the final ball leaves slightly slower than the first arrived.

What happens if two balls are released together?

Two balls leave the far end. One ball leaving at twice the speed would carry the right momentum but too much kinetic energy, so it does not happen. This is a neat way to show that both laws are working at once.

Why do the middle balls hardly move?

The collision passes through them as a compression wave travelling through the steel. Each ball is squeezed and pushes on the next, handing the momentum along almost instantly, so the middle balls move only a tiny distance.

How is this related to Newton’s cradle?

A Newton’s cradle hangs its balls on strings so they swing, while this model rolls them along a track. The physics is the same: identical steel balls, near-elastic collisions and conservation of momentum and energy. The track version makes it easier to set the incoming speed.

Why must the flat part of the track be level?

If the flat section slopes, the resting balls drift apart or roll back towards the ramp. Gaps between the balls turn one clean collision into a series of separate ones, and the neat one-in, one-out result is lost.
