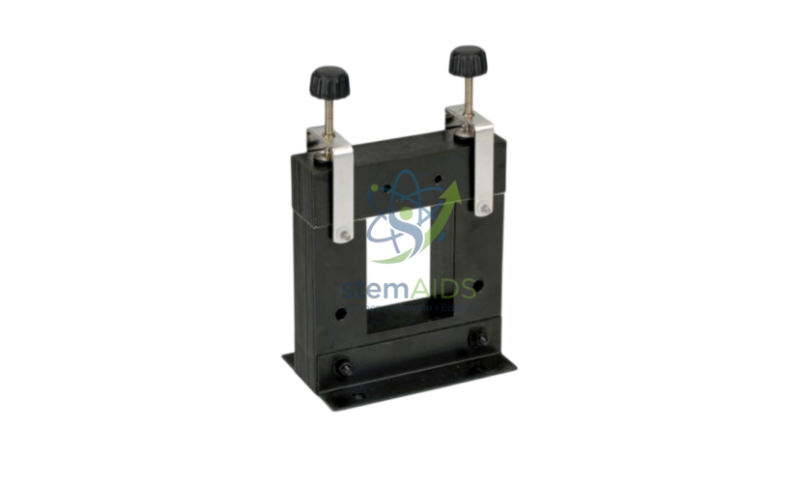

U Core
Noyau en U Constructed from precision-stacked, insulated laminations to significantly reduce eddy current losses and parasitic heating during high-frequency electromagnetic induction cycles.
Standardized 40x40mm Cross-Section Features a precision-machined surface finish to ensure minimal air-gap reluctance when coupled with a matching I-yoke, providing a highly predictable magnetic path for metrological verification.
₹2,056.00
Quick Answer: A U Core (Noyau en U), a ferromagnetic component used as the foundational architecture for characterizing mutual induction and flux linkage.
Price: This listing does not currently show a published price on stemaids.com — contact STEMAids directly for an indicative quotation.
Product Description
This U Core (Noyau en U) is a ferromagnetic component for magnetic circuit analysis. Manufacturer-stated as a high-permeability core, it serves as the foundational architecture for characterizing mutual induction and flux linkage. It is used for constructing transformers and studying electromagnetic field behavior in physics and electrical engineering laboratories.
Specifications
| Specification | Detail |
|---|---|
| Type | U-shaped ferromagnetic core |
| Application | Transformer construction, magnetic circuit analysis |
| Permeability | Manufacturer-stated as high-permeability — verify before publishing a specific figure |
Applications / Uses
- Constructing transformers for laboratory demonstrations
- Studying magnetic circuit behavior
- Characterizing mutual induction and flux linkage
- General electromagnetic field experiments
Care & Maintenance
- Handle the core carefully to avoid chipping or cracking
- Store away from strong external magnetic fields when not in use
- Keep free of dust and debris
- Avoid dropping, as ferromagnetic cores can be brittle
Why Choose STEMAids
STEMAids, a brand of Eduscope Smart Learning Solutions Private Limited, supplies physics lab equipment and teaching aids to schools, colleges, and training institutes across India, with export and bulk tender support available. Explore related products in our Physics Equipments category, including our Resonance Box with Tuning Forks. For bulk or institutional orders, visit our tenders page or contact us at 9311411822.
Frequently Asked Questions
What is a U core used for?
Constructing transformers and studying magnetic circuit behavior.
What material is this core made of?
A ferromagnetic material; the manufacturer states high permeability — verify the exact material grade with STEMAids if needed.
Is this core fragile?
Ferromagnetic cores can be brittle — handle carefully to avoid chipping or cracking.
What does this core demonstrate?
Mutual induction and magnetic flux linkage.
What is the indicative price for this product?
This listing does not currently show a published price on stemaids.com — contact STEMAids directly for an indicative quotation.
