Lenz’s Law Experiment

Expérience loi de Lenz Features precision-engineered aluminum or copper rings (solid and split configurations) mounted on a low-friction pivot to isolate electromagnetic opposition from mechanical drag.

High-Remanence Neodymium Magnet Array Includes a laboratory-grade magnet with a calibrated surface field to ensure consistent induced electromotive force (EMF) and repeatable observation of magnetic damping effects.

₹756.00

Quick Answer: This Lenz’s law experiment is a copper tube used with small cylinders that are dropped through it: a strong magnet falls slowly while a non-magnetic piece of similar size drops straight through. It shows that induced currents always oppose the change that creates them.

Why the Magnet Falls Slowly

Copper is not magnetic, so a magnet dropped into the tube does not stick to its walls, yet it takes far longer to reach the bottom than the non-magnetic piece. As the magnet moves, the magnetic flux through each ring-shaped slice of the tube wall changes, and by Faraday’s law an emf is induced around that slice. Copper conducts very well, so the emf drives circulating eddy currents round the tube.

Lenz’s law gives their direction: they set up a magnetic field that opposes the change producing them. Below the falling magnet the flux is rising, so the induced field pushes the magnet back; above it the flux is falling, so the induced field pulls it back. Both effects act upward, and the magnet soon reaches a steady terminal speed at which this magnetic drag balances its weight.

Where the Energy Goes

A freely falling object turns gravitational potential energy into kinetic energy. In the copper tube the magnet’s kinetic energy stays small, and almost all the potential energy it loses becomes heat in the copper through the eddy currents. The warming is far too small to feel after a single drop, but the argument ties induction to conservation of energy: if the induced current helped the fall instead of opposing it, energy would appear from nowhere.

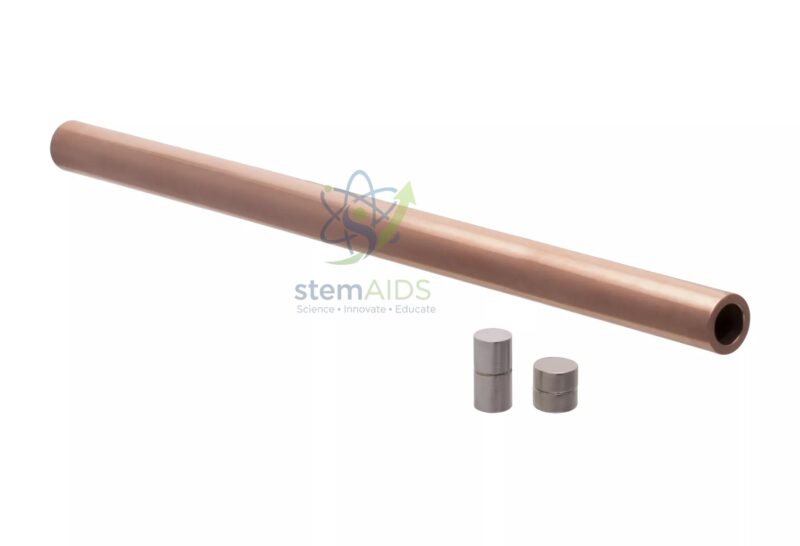

The product photograph shows the copper tube lying beside two small cylinders. In this classic demonstration one cylinder is a strong magnet and the other a non-magnetic dummy, so the class can compare the two fall times directly.

Classroom Investigations

  • Timing the fall of the magnet and of the non-magnetic piece over the same length of tube
  • Repeating the drop through a plastic tube to show that a conducting wall is needed
  • Stacking two magnets to see how a stronger field changes the fall time
  • Discussing magnetic braking in trains, roller coasters and exercise machines

Specifications

Tube material Copper, non-magnetic with high electrical conductivity
Pieces shown Copper tube and two small cylinders, as pictured
Principle Eddy-current braking and Lenz’s law
Power None; the experiment runs on gravity alone
Cylinder materials and tube length Confirm at enquiry

Care & Handling

  • Catch the magnet at the bottom with a hand or a soft pad; a strong magnet can chip if it lands on a hard bench
  • Keep the magnet away from phones, bank cards and other magnetic media
  • Store the magnet away from steel tools, which it can grab suddenly and pinch fingers against
  • Wipe the tube with a dry cloth; tarnish on copper does not affect the result

Why Choose LabEquip

Physics teachers choose this tube when they want a quick, memorable demonstration of Lenz’s law before moving on to coils and meters. LabEquip supplies it alongside the Lenz’s law ring apparatus and the eddy-current Lenz’s law accessories in its physics lab equipment range.

Frequently Asked Questions

Is the magnet attracted to the copper tube?

No. Copper is not a magnetic material, and a stationary magnet inside the tube feels no force from it. The braking appears only while the magnet moves, because only a changing flux induces currents.

Why does the non-magnetic piece fall normally?

It has no magnetic field of its own, so no flux changes in the tube wall and no eddy currents are induced. It falls just as it would in air, which makes it a fair comparison for the magnet.

Would an aluminium tube work?

Yes. Aluminium is also a good non-magnetic conductor and shows the same effect. Its conductivity is lower than that of copper, so the eddy currents are weaker and the magnet usually falls somewhat faster.

What happens if the tube has a slit along its length?

The slit breaks the circular paths that the eddy currents need. The braking becomes much weaker and the magnet falls faster, which confirms that the effect depends on currents flowing around the tube.

Does the magnet keep accelerating inside the tube?

Only briefly. The faster it falls, the larger the induced currents and the stronger the opposing force, so it soon settles at a steady terminal speed.

Which age group is this demonstration suited to?

It works as a surprise demonstration for younger students and as a quantitative investigation of induction and energy for senior school and first-year college physics.
