Quick Answer: The Lenz’s law ring apparatus is a light metal beam balanced on a pointed pivot above a heavy stand, with a non-magnetic ring hanging from each end. Moving a bar magnet into or out of a ring makes the ring move, demonstrating Faraday’s law of induction and the direction rule stated by Lenz.
What Happens When the Magnet Moves
Push one pole of a bar magnet quickly towards a ring and the ring moves away, turning the beam on its pivot. Pull the magnet back and the ring follows it. Holding the magnet still inside the ring produces no movement at all. The ring responds only while the flux through it is changing, which is the core of Faraday’s law.
Lenz’s law explains the direction. The changing flux induces a current round the ring, and that current turns the ring into a small magnet whose field opposes the change. An approaching north pole meets a north face and is repelled; a retreating north pole leaves behind a south face that attracts it. Either way, the ring resists the change in flux.
Demonstrations
- Showing that a moving magnet induces a current in a closed ring
- Predicting the ring’s direction of motion with Lenz’s law
- Showing that a stationary magnet has no effect
- Linking induction to conservation of energy
Why the Beam Is Balanced on a Point

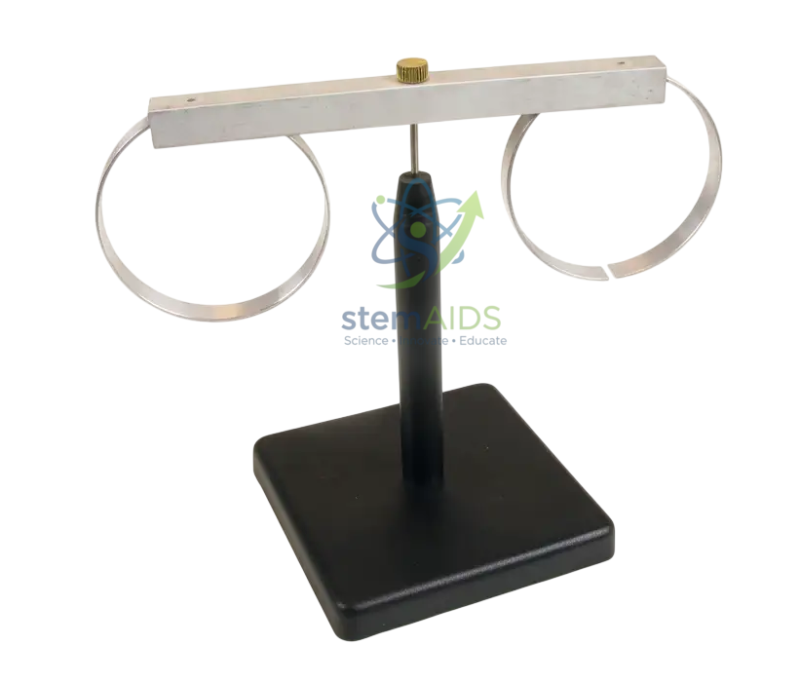

The ring has to be free to respond to a small force. Balancing the beam on a needle point over a stand, as shown in the product photograph, keeps friction very low, so even a gentle push of the magnet sets it turning. The rings are light and non-magnetic, so a stationary magnet does not attract them; any movement must come from induced current.
Specifications
| Apparatus | Pivoted beam with two hanging rings |
| Stand | Heavy base with a vertical pillar, as pictured |
| Rings | Light non-magnetic metal |
| Magnet | Bar magnet used separately |
| Ring details, complete or cut | Confirm at enquiry |
Care & Handling
- Lift the beam off its pivot before moving the stand
- Push the magnet in steadily without touching the ring
- Keep the rings round; a dented ring rubs or hangs unevenly
- Store the pivot point covered so it stays sharp
Why Choose LabEquip
This apparatus is used in senior school physics where students need to see the direction of an induced current, not only its existence. LabEquip supplies it with the copper tube Lenz’s law experiment, suitable bar magnets and other physics lab equipment.
Frequently Asked Questions
Why is the ring repelled when a magnet approaches?
The increasing flux induces a current that makes the facing side of the ring the same pole as the approaching magnet. Like poles repel, so the ring moves away.
Why does the ring follow the magnet when it is pulled away?
Now the flux is decreasing. The induced current reverses, giving the ring a facing pole opposite to the magnet’s, so the ring is drawn after it.
What happens with a ring that has a cut?
A cut ring has no closed path, so an emf is induced but no current flows round it. With no current there is no magnetic force, and the ring does not move.
Why must the rings be non-magnetic?
If they were made of iron, the magnet would attract them whether or not it was moving, hiding the effect of the induced current.
How does this show conservation of energy?
The induced current always opposes the motion, so work must be done to push the magnet in. That work becomes the kinetic energy of the ring and heat in the metal.
Does a stronger or faster magnet help?
Yes. A faster or stronger magnet changes the flux more quickly, inducing a larger current and a bigger push on the ring.
