Quick Answer: An Electro PJP 7041 MI T BNC/BNC Adapter, a signal splitter branching one BNC male input into two female outputs for parallel waveform monitoring.
Price: This listing does not currently show a published price on stemaids.com — contact STEMAids directly for an indicative quotation.
Product Description

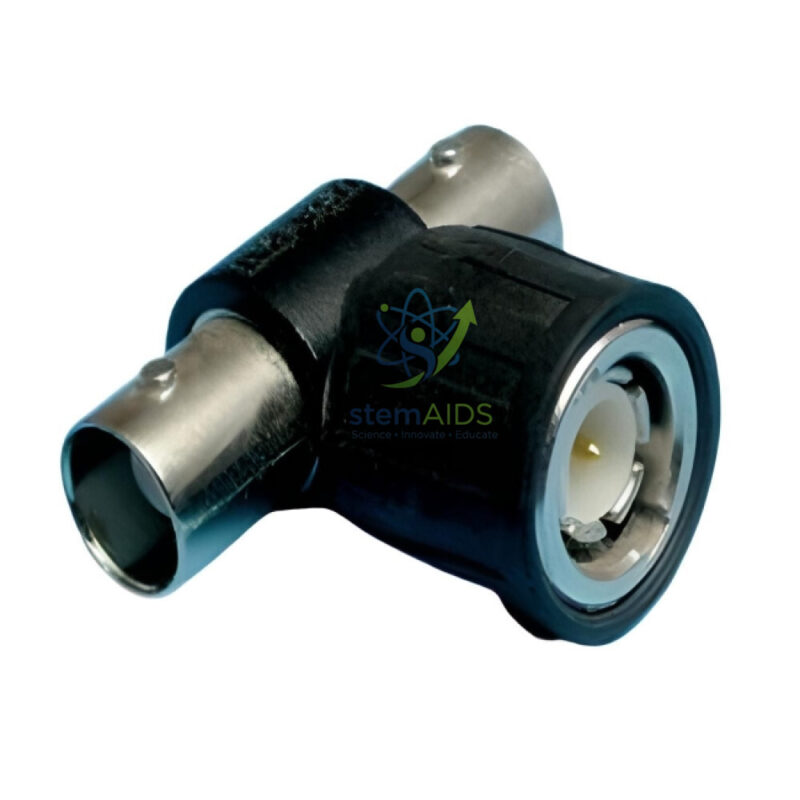

This Electro PJP 7041 MI T BNC/BNC Adapter is a signal splitter designed for laboratory and industrial diagnostics. It facilitates parallel waveform monitoring by branching one BNC male input into two female outputs. This component is designed for oscilloscope-based signal characterization, supporting impedance matching and signal transmission in electronics research environments.
Specifications
| Specification | Detail |
|---|---|
| Type | T-BNC/BNC signal splitter adapter |
| Model | PJP 7041-MI |
| Configuration | 1 BNC male input to 2 BNC female outputs |
| Application | Parallel waveform monitoring, oscilloscope signal characterization |
Applications / Uses
- Splitting one signal to monitor on two instruments simultaneously
- Oscilloscope-based signal characterization
- Parallel waveform monitoring in electronics research
- General laboratory RF/signal test setups
Care & Maintenance
- Keep connector contacts clean and free of debris
- Avoid overtightening the BNC locking mechanisms
- Check for signs of wear on connector pins before each use
- Store in a dry location to prevent corrosion of contacts
Why Choose STEMAids
STEMAids, a brand of Eduscope Smart Learning Solutions Private Limited, supplies physics lab equipment and teaching aids to schools, colleges, and training institutes across India, with export and bulk tender support available. Explore related products in our Physics Equipments category, including our Tuning Fork Sets. For bulk or institutional orders, visit our tenders page or contact us at 9311411822.
Frequently Asked Questions
What does this adapter do?
It splits one BNC signal input into two BNC outputs, allowing parallel monitoring on two instruments.
What is this adapter’s model number?
PJP 7041-MI.
What equipment uses this adapter?
Oscilloscopes and other instruments used for signal characterization.
How should this adapter be maintained?
Keep contacts clean, avoid overtightening, and check for pin wear before use.
What is the indicative price for this product?
This listing does not currently show a published price on stemaids.com — contact STEMAids directly for an indicative quotation.
