Wheatstone Bridge Measurement Apparatus

Product Description

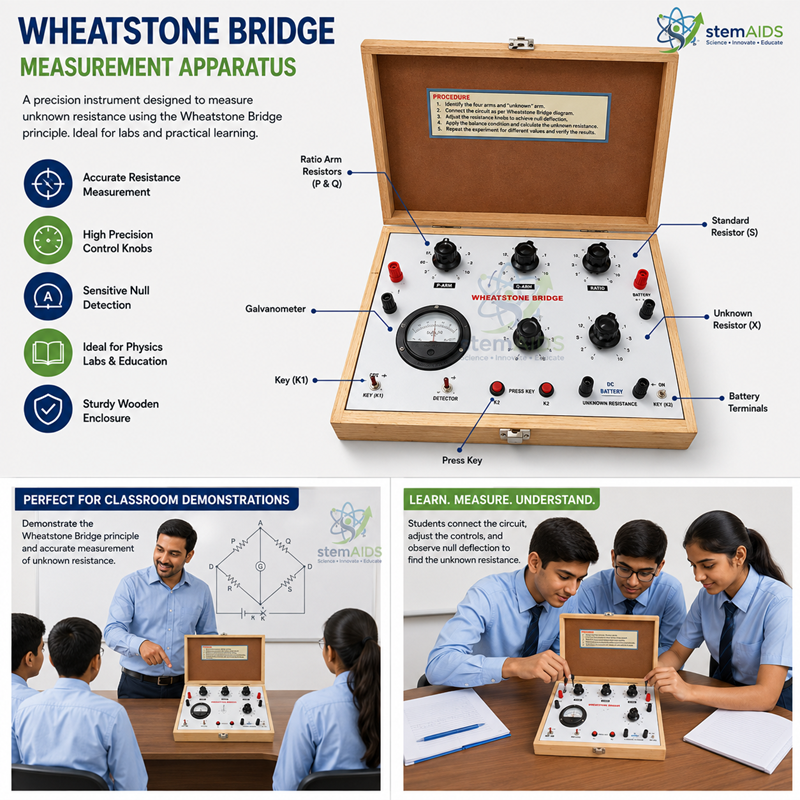

The STEMAids Wheatstone Bridge Measurement Apparatus provides a structured circuit arrangement with four resistance arms and connections for a detector and electrical source. One arm contains the unknown resistance, while the remaining known or adjustable arms establish the balance condition.

At balance, the detector indicates zero current or zero potential difference between the bridge midpoints. Students then calculate the unknown resistance from the verified values of the ratio arms and standard resistance. The exact resistance range, detector type and component configuration must be confirmed before procurement.

Key Features

• Null-balance measurement: Determines resistance by detecting a balanced bridge condition rather than relying only on an absolute current reading.
• Four-arm bridge circuit: Provides the standard arrangement required for Wheatstone bridge experiments.
• Quantitative laboratory work: Supports resistance calculations from known bridge-arm ratios.
• Clear circuit analysis: Helps students connect Kirchhoff’s laws, potential difference and resistance ratios.
• Reusable apparatus: Suitable for repeated supervised practical sessions when operated within verified limits.
• Fault-finding value: Allows learners to identify incorrect connections, unsuitable resistance settings and unstable balance points.
• Curriculum-aligned use: Supports electrical measurement, resistance and direct-current circuit experiments.

Technical Specifications

What’s Included in the Kit

• One Wheatstone Bridge Measurement Apparatus.
• Ratio and standard resistance controls or modules
• Null detector or galvanometer.
• Unknown resistance samples.
• Connecting leads, power source and experiment manual.

Applications / Uses

• Measuring an unknown electrical resistance by comparison.
• Verifying the Wheatstone bridge balance condition.
• Studying null-deflection measurement methods.
• Comparing measured resistance with a multimeter reading.
• Investigating series and parallel resistor combinations.
• Teaching bridge sensitivity, contact resistance and measurement error.

How to Use the Wheatstone Bridge Measurement Apparatus

1. Confirm the apparatus ratings and identify all bridge arms.
2. Keep the electrical source switched off while making connections.
3. Connect the unknown resistance, standard resistance and ratio arms according to the approved diagram.
4. Connect the null detector across the bridge midpoints.
5. Apply the approved low-voltage DC supply.
6. Adjust the standard or ratio resistance until the detector shows zero deflection.
7. Record the bridge-arm values and calculate the unknown resistance.
8. Switch off the supply before changing the circuit or test resistance.

Safety note: Use only an approved, current-limited laboratory source. Excessive current can heat the resistors, alter their resistance and damage the detector. Never connect the bridge directly to mains electricity.

Care & Maintenance

• Disconnect the apparatus before cleaning, adjustment or storage.
• Keep terminals, resistance controls and detector connections dry and free from oxidation.
• Do not force control knobs or exceed the confirmed resistance and current ratings.
• Verify standard resistances and detector zero periodically using suitable reference equipment.

Why Choose STEMAids

STEMAids supplies physics apparatus, electrical measurement equipment, experiment setups and STEM learning resources for educational institutions. Its range supports practical work in electricity, magnetism, mechanics, optics and thermodynamics. Buyers can explore related electrical and electronics laboratory equipment, physics laboratory apparatus, general physics laboratory instruments and the complete STEMAids scientific equipment catalogue. Measurement ranges and supplied components should be confirmed for curriculum, tender and export orders.

Frequently Asked Questions

What is a Wheatstone Bridge Measurement Apparatus used for?

It is used to determine an unknown electrical resistance by comparing it with known resistances at the bridge balance point.

How does a Wheatstone bridge measure resistance?

The bridge arms are adjusted until no current flows through the null detector. The unknown resistance is then calculated from the known resistance and ratio-arm values.

Does the apparatus include a galvanometer?

A galvanometer or other null detector is not confirmed as included. Check the approved packing list before ordering.

What resistance range can it measure?

The measurement range is not confirmed. It depends on the available ratio arms, standard resistance and detector sensitivity.

Why is the balance point important?

At the balance point, the potential difference across the detector is zero. This allows the unknown resistance to be calculated from resistance ratios.

Can the apparatus be connected directly to mains electricity?

No. Use only the approved low-voltage, current-limited laboratory source specified for the apparatus.
