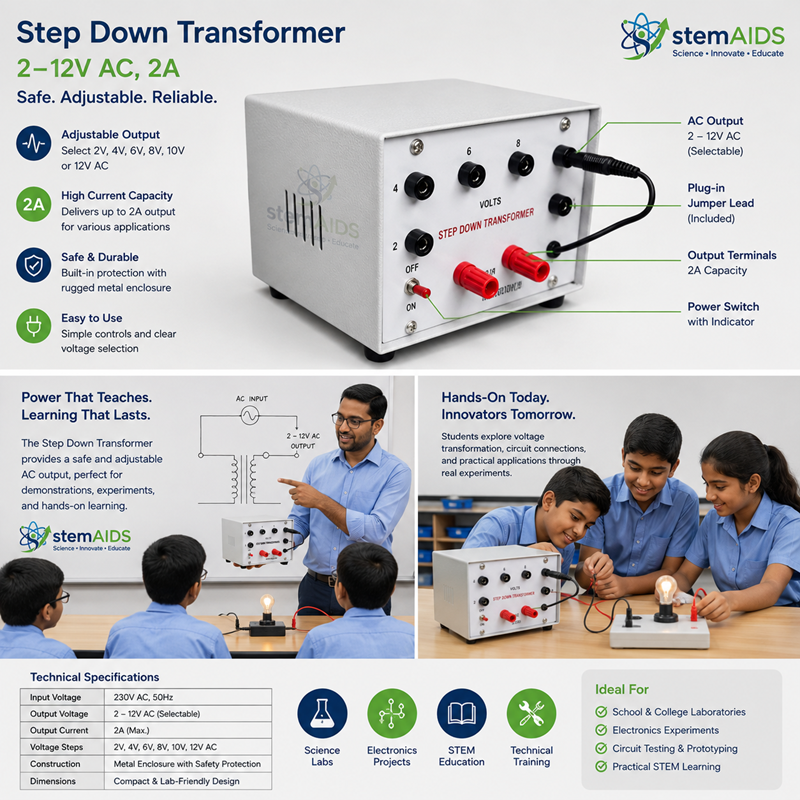

The Step Down Transformer 2–12V 2A AC is a laboratory electrical device used for supplying low-voltage alternating current to compatible experiments and training circuits. It is intended for schools, colleges, technical institutes and electrical laboratories that require an AC source with an output range of 2–12 V and a rated current of 2 A.
Product Description
The STEMAids Step Down Transformer reduces a higher AC input voltage to a lower 2–12 V AC output. It supports practical work involving transformer action, electromagnetic induction, alternating current and the operation of compatible low-voltage electrical components.
The transformer has a stated 2 A output rating. Its input voltage, individual output taps, duty cycle, voltage regulation, winding material, core construction, enclosure material and protective devices must be confirmed from the approved technical datasheet.
Key Features
- 2–12 V AC output: Supplies low-voltage alternating current within the stated output range.
- 2 A rated output: Supports compatible laboratory loads within the confirmed operating conditions.
- Step-down operation: Reduces the primary AC voltage to a lower secondary AC voltage.
- Practical teaching value: Supports demonstrations of voltage transformation and electromagnetic induction.
- Laboratory compatibility: Can power suitable lamps, coils, trainer circuits and other AC apparatus.
- Repeatable experiments: Provides a reusable alternative to temporary low-voltage AC arrangements.
- Accessible output range: Allows experiments at different voltages when the available output-selection method is confirmed.
Technical Specifications
|
Specification |
Detail |
|
Product type |
Laboratory step-down transformer |
|
Output voltage |
2–12 V AC |
|
Rated output current |
2 A |
|
Output waveform |
Alternating current |
|
Product-specific certification |
No product-specific certification verified |
What’s Included in the Kit
- One Step Down Transformer 2–12V 2A AC
- Integrated output terminals or sockets
- Input power cable
- Laboratory connection leads
- Operating instructions
Applications / Uses
- Demonstrating step-down transformer operation
- Studying electromagnetic induction and transformer ratios
- Supplying compatible low-voltage AC circuits
- Operating suitable coils, lamps and electromagnetic apparatus
- Supporting AC voltage and current measurements
- Powering compatible physics and electrical trainer systems
Explore related electrical and electronics laboratory equipment, laboratory measuring instruments, physics laboratory equipment and educational STEM kits.
How to Use the Step Down Transformer 2–12V 2A AC
- Confirm that the available input supply matches the transformer’s approved primary rating.
- Keep the transformer switched off and disconnected while assembling the secondary circuit.
- Select the required output voltage using the confirmed taps or control arrangement.
- Connect the load to the appropriate AC output terminals.
- Check that the load current will not exceed the stated 2 A rating.
- Energise the transformer and measure the output with an AC voltmeter where required.
- Switch off and disconnect the input before changing the output or circuit connections.
Safety note: The primary side may operate at hazardous mains voltage. Do not open the enclosure, short-circuit the secondary or exceed the 2 A rating. Use the transformer under qualified adult supervision.
Care & Maintenance
- Keep ventilation openings unobstructed and stop operation if excessive heating occurs.
- Inspect the input cable, output terminals and leads before each session.
- Clean the disconnected enclosure with a dry, non-abrasive cloth.
- Store the transformer indoors in a dry area away from liquids and conductive debris.
Why Choose STEMAids
STEMAids is the STEM education brand of Eduscope Smart Learning Solutions Private Limited, a New Delhi manufacturer of laboratory apparatus, science kits and educational models. The company supplies schools, colleges, institutional programmes, tenders and export buyers. Its physics range includes electrical trainers, measuring instruments and practical experiment equipment. Buyers should obtain the approved transformer datasheet before procurement or circuit integration.
Frequently Asked Questions
What is a Step Down Transformer 2–12V 2A AC used for?
It supplies low-voltage AC for compatible laboratory circuits, transformer demonstrations and electrical training apparatus.
Does this transformer provide DC output?
No. The specified output is AC. A separate rectifier and filtering circuit would be required to obtain DC.
What is the maximum output current?
The stated output-current rating is 2 A. The connected load must remain within this limit and any confirmed duty-cycle restriction.
Can students select different output voltages?
The stated range is 2–12 V AC. The exact available taps and selection method must be confirmed from the product specification.
Can it be used in school laboratories?
Yes. It is suitable for supervised lessons involving transformers, AC circuits, induction and low-voltage electrical apparatus.
Does the transformer include overload protection?
No protection feature has been verified. Fuse, thermal and short-circuit protection must not be claimed without documentary confirmation.
