In Stock

Tripod

₹420.00

Quick Answer: A laboratory tripod is a three-legged metal stand with a ring at the top that holds metal mesh, a pipeclay triangle or an evaporating basin at a fixed height above a burner. It is the standard support for heating beakers, flasks and crucibles in school chemistry.

How the Tripod Sets Up a Heating Experiment

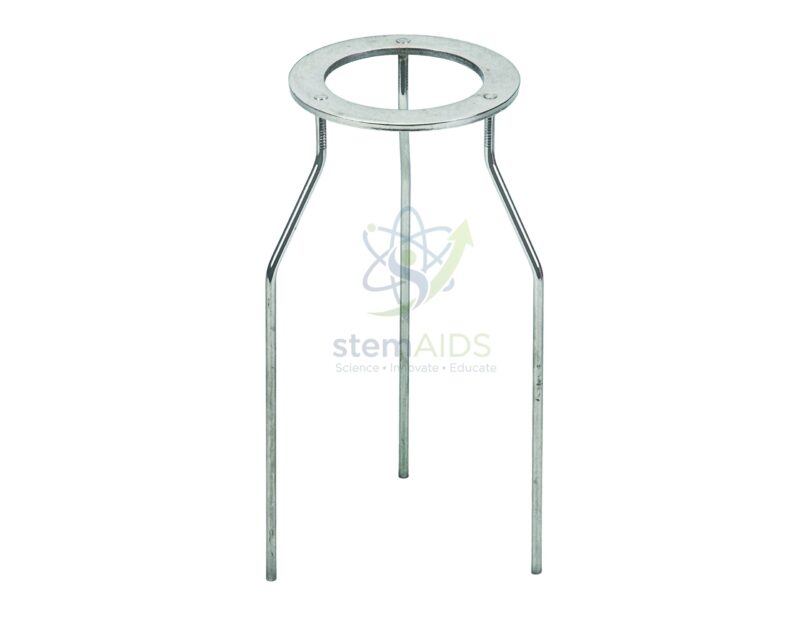

The photograph shows the classic design: a flat ring top carried on three straight legs. Three feet always stand without rocking, even on an uneven bench, which is why this stand rather than a four-legged one became the default heating support. The open ring lets the burner sit directly underneath, with the flame playing on whatever is placed across the top.

It rarely works alone. Metal mesh across the ring gives a flat seat for a beaker or conical flask; a pipeclay triangle holds a crucible so its base is exposed to the flame; and a wide evaporating basin can rest on the ring directly. Height matters, because the burner should place the hottest part of the flame, just above the inner blue cone, against the mesh or crucible.

This plain ring design is lighter than a heavy cast iron tripod stand, which suits students carrying equipment to and from benches. For heavy loads such as large water baths or sand trays, the cast iron version gives more stability.

Typical Heating Practicals

  • Heating water or solutions in a beaker on wire mesh
  • Heating copper carbonate or magnesium in a crucible set in a pipeclay triangle
  • Evaporating a solution to dryness in a basin to recover a dissolved solid
  • Comparing the energy released by burning fuels, with a calorimeter can supported over a spirit burner

Handling & Care

  • After heating, the ring stays hot for several minutes; leave it to cool where nobody will grab it
  • Stand the tripod on a heatproof mat, never directly on a plastic or laminated surface
  • Keep the burner hose clear of the legs so it cannot be pulled into the flame
  • Remove scale and soot with a wire brush; a bent leg tilts the ring, so straighten or replace it

Specifications

Product Laboratory tripod stand
Design as pictured Flat ring top on three straight legs
Holds Wire mesh, pipeclay triangle or evaporating basin
Used with Bunsen burner, cartridge burner or spirit lamp
Height and ring diameter Confirm at enquiry

Why Choose LabEquip

Schools fit out chemistry rooms with one tripod per bench station, ordered together with mesh, burners and heatproof mats, all found in LabEquip’s general lab products range. Class quantities of this laboratory tripod can be requested through the contact page.

Frequently Asked Questions

Can a crucible sit directly on the tripod ring?

No, the ring is too wide. Place a pipeclay triangle across the ring and rest the crucible in it, so most of the crucible’s base is exposed to the flame.

How do I set the right height between burner and tripod?

Light the burner with the air hole open and look at the blue flame. The mesh or crucible base should sit just above the tip of the inner cone. If the stand is too tall for your burner, choose a shorter tripod rather than turning the gas higher.

Why use a tripod instead of a retort stand and ring?

A tripod is quicker to set up and very stable for vessels resting on top. A retort stand with an iron ring lets you change the height freely and also clamp the neck of a flask, which is useful for distillation or reflux.

Is a tripod safe on a laminate bench?

Put it on a heatproof mat. The legs conduct heat from the ring down to the bench, and a hot vessel or dropped gauze can scorch or blister a laminate or plastic surface.

How should a hot tripod be moved?

Wait until it has cooled, or lift it with crucible tongs while wearing heat-resistant gloves. The whole stand stays hot well after the flame is out, so warn the class before anyone tidies up.

Can a tripod be used with an electric heater?

Usually not. A tripod is designed to sit over a burner flame. On an electric hot plate the vessel stands directly on the plate, and a tripod would only lift it away from the heat.
