Retort Stand, Sheet Metal

High-Gauge Reinforced Steel: Constructed from heavy-duty sheet metal that is press-formed for maximum rigidity, ensuring the base does not flex or bend under load.

Low-Profile Stability: The thin, flat design allows the base to slide easily under other equipment or low-hanging cabinets, maximizing your vertical workspace.

₹210.00

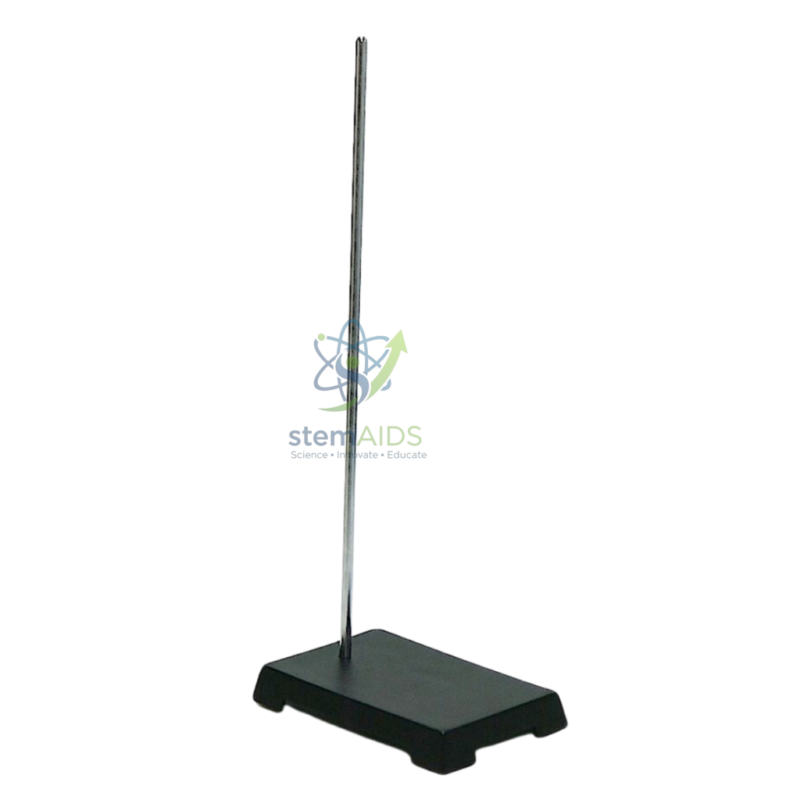

Quick Answer: The Retort Stand, Sheet Metal is a sheet metal retort stand: a base pressed and folded from metal sheet, with an upright rod for boss heads, clamps and rings. The listing photograph shows a black rectangular base with the rod near one end.

Sheet Metal versus Cast Bases

A sheet metal base is formed rather than cast. A flat blank is pressed into a shallow tray shape, with the edges turned down to stiffen it and a fixing underneath to take the rod. The result is lighter for its size than a solid casting and much less brittle: knocked off a bench, it tends to dent instead of cracking.

The light weight is both the benefit and the limit. A sheet metal stand is easy to carry, stack and take to field or outreach sessions, but it holds less load at a long reach than a heavy cast iron retort stand. For titration, filtration and small clamps it is ample; for a flask and condenser on one stand, keep the clamps short and the load over the base.

The gauge of the sheet is not stated in the title. For benches that are uneven, the sheet type stand with leveling screws adds adjustable feet to a flat plate base.

Specifications

Type Retort stand with sheet metal base
Base Pressed sheet, rectangular (as titled and pictured)
Finish Black in the listing photograph
Rod Upright rod near one end of the base
Weight class Lighter than a cast base of similar size
Sheet gauge and rod length Confirm at enquiry

Care & Handling

  • Keep the sheet metal retort stand on a flat surface; a dented base rocks and should be flattened or replaced.
  • Dry the underside after spills, since folded edges can trap liquid and rust from the inside.
  • Check the rod fixing underneath for looseness at the start of each term.

Applications

  • Titration and filtration at student benches
  • Portable set-ups for field work, science fairs and outreach visits
  • Holding thermometers, probes and test tubes where loads are small
  • Physics demonstrations with light pendulums or springs

Why Choose LabEquip

Schools that move equipment between rooms or take practicals off-site often prefer lighter stands that survive being knocked about. LabEquip lists sheet metal, cast iron and die cast stands together in General Lab Products, so each can be chosen for its job.

Frequently Asked Questions

How is a sheet metal base different from a cast iron base?

It is pressed and folded from sheet instead of poured into a mould. It is lighter and less brittle, so it dents rather than cracks when dropped, but it provides less weight to resist tipping.

Is it stable enough for a titration?

Yes, a burette in a clamp over the base is a light load. Turn the stand so the burette hangs over the base and keep the clamp close to the rod.

Can it hold a distillation set-up?

Small ones, with care. Use short clamps, keep the flask over the base and support a long condenser on a second stand.

Why might a sheet metal base rock on the bench?

Sheet can dent or bend if the stand is dropped or stood on, and then it rests on two corners. Check it on a flat surface and straighten or replace a distorted base.

Does sheet metal rust?

Steel sheet rusts where its coating is damaged. Dry the base after spills, especially along folded edges, and touch up chips in the finish.

Are the rods interchangeable with other stands?

Only if the thread and diameter match. Measure an existing rod before ordering spares or mixing parts between different stand types.

Last Updated: September 2026
