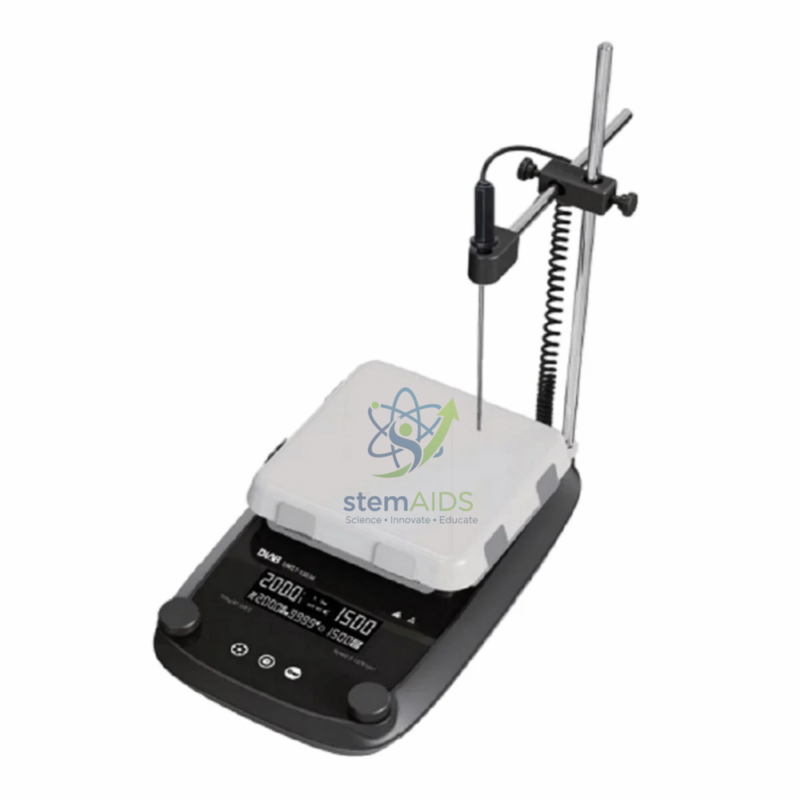

The StemAids LCD Magnetic Heating Stirrer Pack – DLAB is a precision laboratory stirring and heating solution designed for educational laboratories, research facilities, chemistry labs, pharmaceutical labs, quality-control units, and institutional procurement requirements. It combines controlled magnetic stirring with digital temperature regulation, making it suitable for preparing solutions, dissolving reagents, heating liquids, maintaining reaction mixtures, and performing repeatable classroom or laboratory demonstrations.
Product Description
The LCD Magnetic Heating Stirrer Pack – DLAB supplied under the StemAids brand is engineered for stable liquid mixing and controlled heating in routine laboratory applications. The unit features an LCD display for monitoring speed and temperature, a brushless DC motor for low-maintenance operation, and a chemically resistant ceramic-coated work plate for dependable laboratory use.
This magnetic hotplate stirrer is suitable for science laboratories where accurate stirring speed, uniform heating, and safe operation are important. Its digital control interface helps users set desired stirring and heating values with clarity, while the hot-surface warning and overheating protection support safer laboratory handling.
Key Features
- LCD display for clear speed and temperature monitoring.
- Digital speed control for consistent stirring performance.
- Digital temperature control for controlled heating applications.
- Ceramic-coated aluminium work plate for chemical resistance.
- Brushless DC motor for low-maintenance and spark-free operation.
- Compatible with PT1000 external temperature sensor for improved temperature monitoring.
- Hot-surface warning indicator for safer handling after heating.
- Overheating protection for enhanced operational safety.
- Suitable for laboratories, colleges, universities, research labs, and industrial testing facilities.
Product Specifications
| Product Name | LCD Magnetic Heating Stirrer Pack – DLAB |
|---|---|
| Brand | StemAids |
| Reference Model | DLAB MS-H-ProA LCD Digital Magnetic Hotplate Stirrer |
| Cat. No. | 8060221110 |
| Work Plate Dimension | Ø135 mm / 5 inch |
| Work Plate Material | Aluminium cover with ceramic coating |
| Maximum Stirring Quantity | Up to 20 L h3O |
| Speed Range | 100-1500 rpm |
| Speed Display | LCD |
| Temperature Display | LCD |
| Heating Temperature Range | Room temperature to 340°C, 1°C increment |
| Temperature Control Accuracy | ±1°C below 100°C; ±1% above 100°C |
| Temperature Display Accuracy | ±0.1°C |
| External Temperature Sensor | PT1000, accuracy ±0.2°C |
| Hot Surface Warning | Warning activates above 50°C |
| Overheating Protection | 420°C |
| Motor Type | Brushless DC motor |
| Maximum Magnetic Bar Length | 80 mm |
| Timer Function | 1 minute to 99 hours 59 minutes |
| Stirring Positions | 1 |
| Data Connector | RS232 |
| Protection Class | IP21 |
| Heating Output | 600 W |
| Power | 720 W |
| Voltage / Frequency | 100-120 V / 200-240 V, 50/60 Hz |
| Dimension | 280 × 160 × 100 mm |
| Weight | Approx. 2.8 kg |
| Operating Ambient Temperature | 5°C to 40°C |
| Operating Ambient Humidity | Up to 80% RH |
Applications
- Heating and stirring laboratory solutions.
- Preparation of chemical mixtures and buffer solutions.
- Dissolving powders, reagents, and salts in liquid media.
- Educational demonstrations in chemistry and science laboratories.
- Sample preparation in research and quality-control labs.
- Controlled stirring for analytical and experimental procedures.
How to Use the LCD Magnetic Heating Stirrer
- Place the magnetic heating stirrer on a clean, dry, flat, and stable laboratory bench.
- Connect the unit to the correct power supply as per the rated voltage.
- Place a suitable heat-resistant beaker or vessel containing the liquid sample on the work plate.
- Insert an appropriate magnetic stir bar into the liquid.
- Switch on the unit and set the required stirring speed using the control knob or digital interface.
- Set the desired temperature if heating is required.
- For improved temperature monitoring, connect the PT1000 external temperature sensor where applicable.
- Allow the sample to stir and heat under supervision until the required result is achieved.
- After use, switch off heating and stirring functions before removing the vessel.
- Allow the hotplate to cool completely before cleaning or storing the instrument.
Safety and Handling Guidelines
- Do not touch the work plate while the hot-surface warning is active.
- Use suitable heat-resistant glassware or vessels only.
- Do not operate the stirrer without liquid in the vessel when heating is active.
- Keep flammable materials away from the hotplate surface.
- Use appropriate personal protective equipment such as gloves, lab coat, and safety goggles.
- Clean spills immediately after the unit has cooled and the power is disconnected.
- Use the equipment only under trained laboratory supervision.
Why Choose StemAids LCD Magnetic Heating Stirrer Pack?
StemAids supplies laboratory instruments with a focus on usability, technical reliability, and institutional procurement suitability. This magnetic heating stirrer pack is suitable for schools, colleges, universities, research laboratories, and industrial testing environments where controlled stirring and heating are required in daily laboratory work.
- Suitable for educational and professional laboratory applications.
- Clear product specification support for procurement documentation.
- Useful for chemistry labs, research labs, and STEM learning environments.
- Designed for repeatable heating and mixing procedures.
- Procurement-friendly product description for lab equipment catalogues and institutional tenders.
Frequently Asked Questions
1. What is the LCD Magnetic Heating Stirrer Pack used for?
It is used for stirring and heating liquid samples in laboratories. It is suitable for solution preparation, reagent mixing, chemical experiments, and educational demonstrations.
2. What is the maximum stirring capacity?
The reference DLAB MS-H-ProA model supports stirring up to 20 L of water under suitable operating conditions.
3. What is the heating temperature range?
The heating temperature range is from room temperature to 340°C with 1°C increment control.
4. Does this magnetic stirrer have a safety warning?
Yes. It includes a hot-surface warning that alerts users when the plate temperature is above 50°C.
5. Can it be used with an external temperature probe?
Yes. The unit is compatible with a PT1000 external temperature sensor for improved temperature monitoring.
6. Is this product suitable for schools and colleges?
Yes. It is suitable for science laboratories, chemistry classrooms, higher education institutions, and laboratory training environments.
7. What type of motor is used?
The unit uses a brushless DC motor, which supports low-maintenance operation and stable stirring performance.
8. What glassware should be used on the hotplate?
Use heat-resistant laboratory glassware such as borosilicate beakers or compatible vessels suitable for heating applications.
