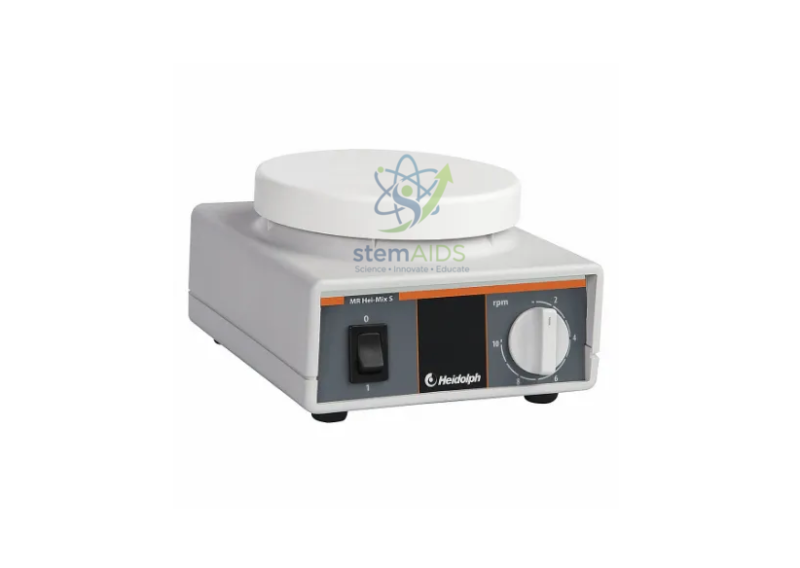

The StemAids Hei-Mix S Magnetic Stirrer HEIDOLPH is a compact, reliable and easy-to-use laboratory magnetic stirrer designed for gentle to vigorous liquid mixing in educational, research and industrial laboratory environments. It is suitable for routine stirring tasks, titrations, biochemical applications, microbiology work, sample preparation and small-volume laboratory mixing.
The Hei-Mix S is especially useful for laboratories that require consistent stirring performance in a small bench space. Its white PVDF top surface helps users clearly observe colour changes during titration and chemical reactions. The durable polyamide housing supports continuous operation, making it suitable for schools, colleges, universities, research laboratories and quality control labs.
Important Heating Note: The Hei-Mix S model is a magnetic stirrer without integrated heating. Standard technical specifications do not include heating power, heating temperature range or heating control. If heating is required, users should select a suitable hotplate magnetic stirrer model or use an approved external heating arrangement as per laboratory safety guidelines.
Key Features
- Compact magnetic stirrer for laboratory bench use
- Suitable for stirring volumes up to 5 litres
- Wide speed range from 0 to 2,200 rpm
- White PVDF top plate for easy observation of colour changes
- Durable polyamide housing for continuous laboratory use
- Ideal for titration, biochemical and microbiology applications
- Simple analogue speed control for user-friendly operation
- Space-saving design for educational and research laboratories
- Reliable German-engineered HEIDOLPH magnetic stirring performance
- Supplied under StemAids brand for laboratory and institutional use
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Hei-Mix S Magnetic Stirrer HEIDOLPH |
| Brand | StemAids |
| Original Manufacturer Reference | HEIDOLPH Hei-Mix S |
| Product Type | Magnetic Stirrer |
| Heating Function | No integrated heating function |
| Maximum Stirring Capacity | Up to 5 litres of water |
| Speed Range | 0–2,200 rpm |
| Speed Control | Analogue control knob |
| Top Plate Material | White PVDF surface |
| Top Plate Diameter | Approx. 104 mm |
| Housing Material | Robust polyamide housing |
| Drive Type | Shaded pole motor |
| Maximum Permissible Load | Approx. 6 kg |
| Dimensions | Approx. 126 × 80 × 140 mm |
| Weight | Approx. 1.1 kg |
| Protection Class | IP21 |
| Noise Level | Less than 70 dB(A) |
| Recommended Applications | Titration, sample mixing, biochemical work, microbiology applications and educational laboratory use |
Detailed Product Description
The StemAids Hei-Mix S Magnetic Stirrer HEIDOLPH is designed for laboratories that need dependable magnetic stirring without unnecessary complexity. Its compact body allows easy placement on laboratory benches, inside teaching labs and near analytical workstations.
With a stirring capacity of up to 5 litres and a maximum speed of 2,200 rpm, this stirrer supports both gentle mixing and faster agitation depending on the sample requirement. It is suitable for preparing solutions, mixing reagents, supporting titration work and maintaining uniform liquid movement during routine laboratory procedures.
The white PVDF plate is a practical feature for titrations and colour-sensitive reactions because it helps users observe visual changes more clearly. This makes the product useful for chemistry laboratories, biology laboratories, microbiology labs and teaching demonstrations.
The Hei-Mix S does not include a heating plate. This makes it suitable for applications where controlled stirring is required without heat exposure. For heat-sensitive biological or chemical samples, a non-heating magnetic stirrer can help reduce the risk of unwanted thermal effects.
Applications
- Chemical solution mixing
- Titration procedures
- Biochemical sample preparation
- Microbiology laboratory work
- Small-scale fermentation support
- Educational chemistry practicals
- Research and development laboratories
- Quality control laboratory testing
- Routine reagent preparation
- Non-heated sample stirring applications
How to Use Hei-Mix S Magnetic Stirrer
- Place the stirrer correctly: Keep the magnetic stirrer on a clean, dry, flat and stable laboratory bench.
- Select a suitable vessel: Use a compatible glass beaker, flask or laboratory container suitable for magnetic stirring.
- Add the magnetic stir bar: Place a clean magnetic stir bar inside the liquid sample.
- Position the vessel: Keep the vessel in the centre of the white PVDF top plate.
- Switch on the unit: Connect the stirrer to the correct power supply and switch it on.
- Adjust the speed: Slowly increase the stirring speed using the control knob until the required vortex or mixing action is achieved.
- Monitor the process: Observe the liquid movement and avoid excessive speed that may cause splashing or unstable stirring.
- Stop after use: Turn the speed control back to zero before removing the vessel.
- Clean the surface: Wipe the top plate with a soft cloth after use. Do not allow liquid to enter the housing.
Safety Instructions
- Do not use the Hei-Mix S as a heating device.
- Do not exceed the recommended stirring capacity.
- Always use a suitable magnetic stir bar and compatible vessel.
- Increase speed gradually to avoid splashing.
- Do not operate the instrument with damaged cables or plugs.
- Keep liquids away from electrical parts and control areas.
- Use appropriate laboratory PPE such as gloves, goggles and lab coat.
- Switch off and unplug the unit before cleaning.
- Use only in a dry indoor laboratory environment.
Why Choose StemAids Hei-Mix S Magnetic Stirrer HEIDOLPH?
| Reason | Benefit |
|---|---|
| Compact Laboratory Design | Saves bench space and fits easily in school, college and research laboratories. |
| High Stirring Speed | Supports mixing speeds up to 2,200 rpm for different laboratory requirements. |
| 5 Litre Stirring Capacity | Suitable for routine solution preparation and small-volume laboratory applications. |
| White PVDF Plate | Helps users observe colour changes clearly during titration and reactions. |
| Durable Housing | Polyamide construction supports long-term laboratory use. |
| Non-Heating Operation | Suitable for samples where heating is not required or should be avoided. |
| StemAids Brand Support | Useful for educational institutions, STEM laboratories and procurement teams. |
SEO Keywords
Hei-Mix S Magnetic Stirrer, HEIDOLPH Hei-Mix S, StemAids Magnetic Stirrer, laboratory magnetic stirrer, magnetic stirrer without heating, compact magnetic stirrer, titration magnetic stirrer, biology lab stirrer, chemistry lab stirrer, microbiology magnetic stirrer, educational lab equipment, science laboratory stirrer, magnetic stirrer for schools, magnetic stirrer for colleges.
SEO Meta Title
StemAids Hei-Mix S Magnetic Stirrer HEIDOLPH | Compact Lab Stirrer Without Heating
SEO Meta Description
StemAids Hei-Mix S Magnetic Stirrer HEIDOLPH is a compact laboratory stirrer for up to 5 L mixing, titration, biochemical work and educational labs. Non-heating magnetic stirrer with 0–2,200 rpm speed range.
Google E-E-A-T Focused Content
The StemAids Hei-Mix S Magnetic Stirrer HEIDOLPH product description is written with clear technical information, practical usage guidance and transparent safety notes. Since the Hei-Mix S is a non-heating magnetic stirrer, this content avoids unsupported heating claims and clearly explains the correct product capability.
This helps laboratory buyers, teachers, researchers and procurement officers make an informed purchase decision. The description focuses on product experience, technical expertise, trustworthy specifications and real laboratory applications, supporting Google E-E-A-T content quality principles.
Frequently Asked Questions
1. What is the use of Hei-Mix S Magnetic Stirrer?
The Hei-Mix S Magnetic Stirrer is used for mixing liquids, preparing solutions, titration work, biochemical applications, microbiology procedures and routine laboratory stirring.
2. Does Hei-Mix S have a heating function?
No. The Hei-Mix S is a magnetic stirrer without integrated heating. It is suitable for non-heated stirring applications.
3. What is the maximum stirring capacity?
The Hei-Mix S can stir up to 5 litres of water, depending on the vessel, stir bar and sample conditions.
4. What is the speed range of this magnetic stirrer?
The speed range is 0–2,200 rpm, allowing users to select gentle or vigorous stirring as required.
5. Is this stirrer suitable for titration?
Yes. The white PVDF surface makes it useful for titration work because colour changes can be observed clearly.
6. Can it be used in school and college laboratories?
Yes. Its compact size, simple operation and reliable stirring performance make it suitable for schools, colleges, universities and STEM laboratories.
7. What type of samples can be stirred?
It can be used for aqueous solutions, reagents, buffers, microbiology media and other compatible laboratory liquids.
8. Is the Hei-Mix S suitable for heat-sensitive samples?
Yes. Since it does not include integrated heating, it is useful for applications where stirring is needed without adding heat.
9. What is the top plate size?
The stirrer plate diameter is approximately 104 mm.
10. Why choose StemAids Hei-Mix S Magnetic Stirrer?
It offers compact design, reliable stirring performance, simple speed control and suitability for educational, research and routine laboratory applications.
