Elevating grid for water bath WNB-7L

₹985.00

Quick Answer: The Elevating grid for water bath WNB-7L is a perforated stainless steel platform for the WNB 7-litre water bath, pictured as a hole-punched deck between two end plates, that stands in the tank and lifts flasks and bottles off the floor to a better working depth.

A Grid for a Small Tank

WNB is a series of Memmert water baths, and the 7L in this title points to the 7-litre WNB 7 tank. In a bath of that size there is little room to spare, so an accessory has to fit the tank floor closely: a loose grid shifts when vessels are put in, and an oversized one will not go in at all. This elevating grid for WNB-7L tanks is made to suit that footprint.

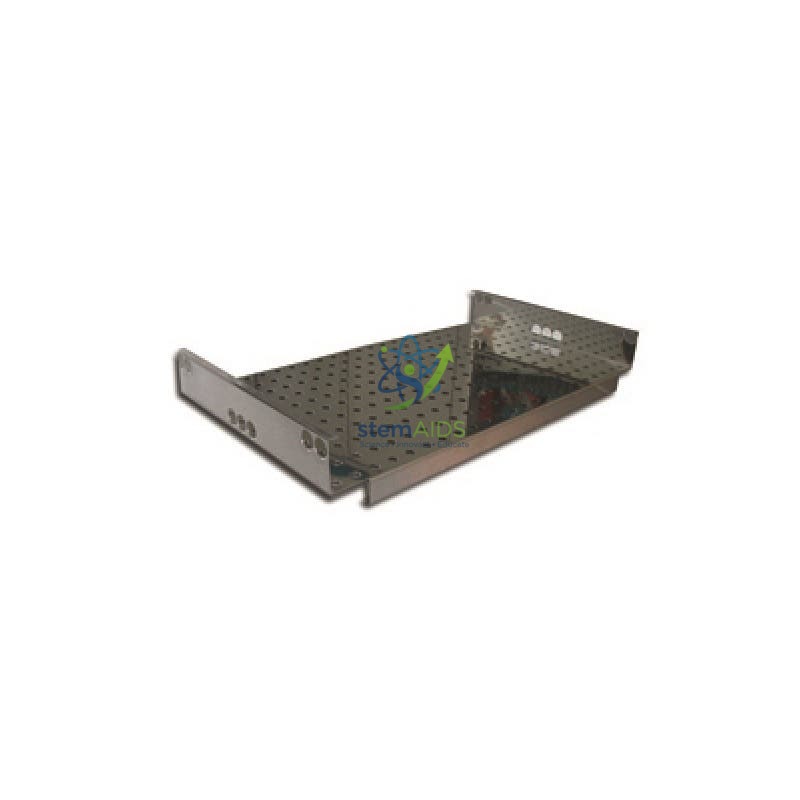

The photo shows a flat deck punched with rows of round holes, held between two end plates folded at the short sides, each with a small row of holes of its own. The deck carries the load and the end plates set its height above the tank floor. Water passes up through the perforations, so vessels on the grid are warmed from below as well as from the sides, and the grid drains quickly when lifted out.

The image file describes the grid as a platform for Erlenmeyer flasks, the conical flasks most often warmed in small baths. Lifting them lets the bath stay filled above its minimum mark while the flasks stand at a sensible depth. For larger WTB tanks the elevating grid for water baths does the same job, and suitable conical flasks are listed separately.

Care & Handling

  • Seat the grid squarely before filling, so it does not slide when vessels are added.
  • Keep the load modest: a small tank holds little water, and many cold vessels at once pull its temperature down for a while.
  • Rinse and dry the grid after use, and clear the perforations if scale or agar residue builds up.
  • Remove the grid whenever the tank floor is cleaned.

Using the Grid in a WNB 7 Bath

  • Warming small conical flasks of broth or media to incubation temperature
  • Standing reagent bottles at a depth where caps and labels stay dry
  • Supporting a small tube rack above the tank floor
  • Thawing frozen bottles with water reaching them from below as well as around them

Specifications

Material Perforated stainless steel, as pictured
Made for WNB 7-litre water bath, as titled
Form Hole-punched deck between two folded end plates, as pictured
Position Stands on the tank floor
Vessels Conical flasks, bottles and small racks
Platform height Confirm at enquiry

Why Choose LabEquip

Labs that work with a compact WNB 7 bath buy this grid to warm flasks and bottles at the right depth without overfilling the small tank. LabEquip lists it in General Lab Products; confirm your bath model through the contact page before ordering.

Frequently Asked Questions

Will this grid fit other water baths?

It is made for the WNB 7-litre tank. Another bath with exactly the same inner floor size may take it, but measure the tank floor before trying it in a different model.

Why are there holes all over the deck?

The perforations let warm water rise through the grid and around the base of each vessel. They also make the grid lighter and let it drain quickly.

How many flasks will fit?

That depends on flask size. A 7-litre tank has a small floor, so a few small conical flasks or bottles fit at once, with gaps left between them for water to move.

Can the grid stay in the bath all the time?

Yes. Stainless steel copes with continuous use in warm water. Lift it out now and then to clean underneath, where scale and debris collect.

Does lifting the vessels change the temperature they reach?

No, the water is at the same temperature at both heights. The grid simply places each vessel where the bath water comes up to about the level of its contents, while the tank stays filled above its minimum mark.

What is the grid made of?

Perforated stainless steel, as pictured, which suits long use in water baths. Rinse off salt solutions and bleach promptly, as chlorides can mark stainless steel.
