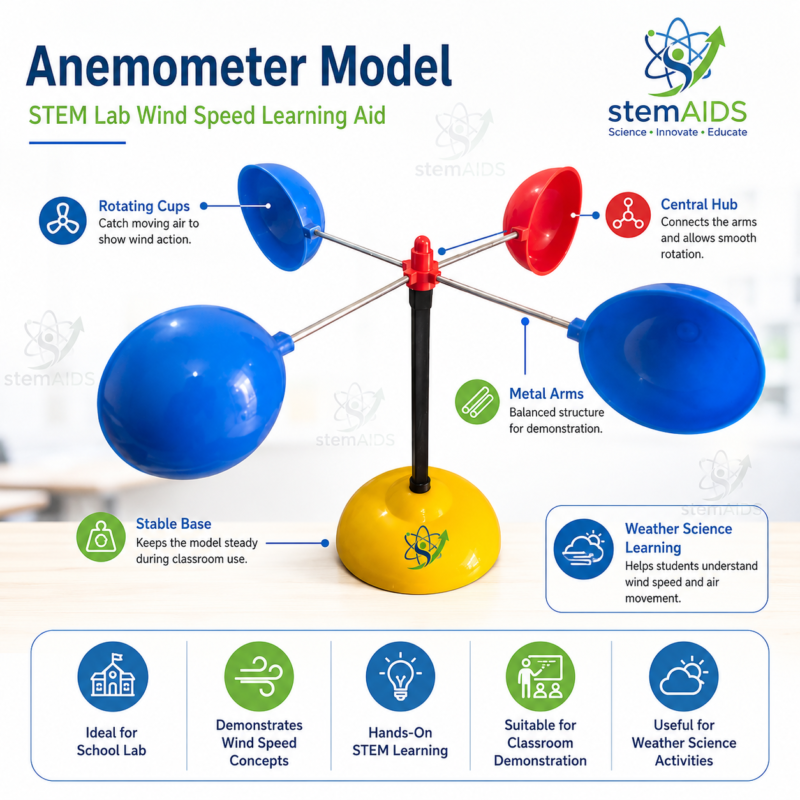

Anemometer Model

Original price was: ₹950.00.Current price is: ₹465.00.

Quick Answer: The Anemometer Model is a teaching version of the instrument meteorologists use to measure wind speed. In the familiar cup design, cups mounted on arms turn about a vertical shaft, and the stronger the wind, the faster they spin.

How Spinning Cups Measure the Wind

Each cup catches more wind on its hollow side than on its rounded back, so the pressure difference turns the rotor in one direction whatever way the wind blows. Because rotation speed rises with wind speed, counting turns over a fixed time gives a measure of the wind. That independence from direction is why cup anemometers have been the standard design at weather stations for well over a century.

With an anemometer model students can do a first version of the measurement themselves. Marking one cup with tape, counting its turns for thirty seconds and repeating in different places around the school shows how buildings shelter or funnel the wind. Converting counts into a speed needs care: the cups move more slowly than the air, so a raw calculation gives a relative figure unless it is compared with a reference instrument.

Where It Sits in a Weather Unit

The anemometer measures speed only. A wind vane gives direction, and together they describe the wind as a weather report would. Linking the class readings to the Beaufort scale, which describes wind force from calm smoke rising straight up to storm damage, connects the numbers to what students can see outside.

Specifications

Type Educational model of a wind-speed instrument
Principle Cups rotate faster as wind speed increases
Measures Relative wind speed by counting rotations
Subjects Geography, environmental science, physics

Applications

  • School weather-station projects recording daily wind alongside temperature and rainfall
  • Comparing sheltered and exposed spots in the school grounds
  • Indoor demonstrations with an electric fan at different settings
  • Introducing the Beaufort scale and the difference between wind speed and direction

Care & Handling

  • Check that the rotor of the anemometer model spins freely before each use; a light touch of oil on a metal bearing helps if it sticks.
  • Bring it indoors after outdoor readings, particularly before rain or strong winds.
  • Store with the cups protected so they are not dented or bent out of line.

Why Choose LabEquip

Geography teachers building a school weather station, and primary teachers running a weather topic, are the usual buyers. LabEquip lists this model within its Astronomy Lab Kits, and a complete Weather Station is also available for fuller recording. Use the contact page for quantities.

Related Products

  • Cup Anemometer with Digital Display: A cup anemometer with a digital display, useful as a reference to calibrate the model’s rotation counts in real units.
  • Weather Station: A classroom weather station for temperature, pressure and humidity, so wind counts can sit in a fuller class weather log.
  • Rain Gauge: A rain gauge that adds rainfall to the weather observations students take alongside wind readings.
  • Small Wind Energy Model: A small wind energy model in which moving air turns a rotor, linking wind speed to wind power.

Frequently Asked Questions

What does an anemometer measure, and how does a cup anemometer model show it?

An anemometer measures wind speed. In the cup design shown by this model, hollow cups on arms catch more wind on their open side than on their rounded back, so the rotor always turns the same way and spins faster as the wind gets stronger. Counting the turns over a fixed time gives a measure of how hard the wind is blowing.

How do students compare wind speed in different places with an anemometer model?

Mark one cup with coloured tape, hold or set the model in the wind and count how many times the marked cup passes in 30 seconds. Repeat at the same height in several spots around the school, such as an open field, a corridor between buildings and a sheltered corner, and compare the counts to see where buildings block or funnel the wind.

Can rotations of a cup anemometer be converted into an actual wind speed?

Turns per second multiplied by the circumference of the circle the cups travel gives the speed of the cups, but the cups always move more slowly than the air, so this figure reads low. With this model, rotation counts are best used as relative readings, or checked against a calibrated digital anemometer to work out a correction factor for the class.

Where should an anemometer be placed to get fair wind readings?

Place it in an open spot, well above head height and as far as possible from walls, trees and roofs, which slow the wind or make it gusty. Keep the position the same for every reading so results from different days can be compared fairly.

What is the difference between an anemometer and a wind vane?

An anemometer tells you how fast the wind is moving; a wind vane tells you the direction it is coming from. A weather report needs both, which is why weather stations mount the two instruments together, and why wind is described as, for example, a moderate wind from the south-west.

How can anemometer readings be linked to the Beaufort scale in class?

The Beaufort scale describes wind force from 0 (calm, smoke rises straight up) to 12 (hurricane) using effects you can see, such as leaves rustling or branches swaying. Ask students to note those effects each time they count rotations, then match their counts to Beaufort numbers to connect the model with the weather outside.

Last Updated: November 2026
