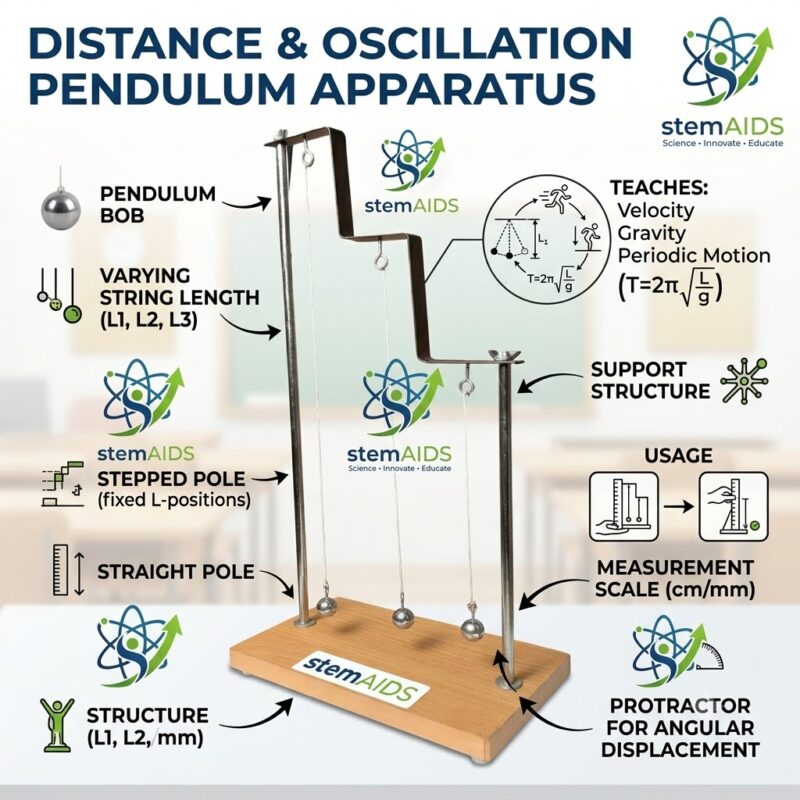

Distance and Oscillation Pendulum Apparatus

The Distance and Oscillation Pendulum Apparatus is a physics laboratory setup used to investigate how pendulum length affects oscillation time. It is intended for supervised school, college and STEM laboratories, helping learners measure displacement, count oscillations, calculate time period and examine simple harmonic motion under small-angle conditions.

Product Description

The STEMAids Distance and Oscillation Pendulum Apparatus provides an adjustable setup for practical study of pendulum motion. A suspended bob is displaced through a small angle and released without a push. Students measure the effective pendulum length, time a selected number of oscillations and calculate the average period.

The experiment demonstrates that a longer simple pendulum has a longer period under comparable conditions. Reliable results require a stable support, a clearly defined pivot, low-amplitude motion and measurement from the pivot to the bob’s centre of mass. View related physics laboratory products and educational science models.

Key Features

• Adjustable pendulum length: Supports comparison of oscillation periods at different effective lengths.
• Distance measurement: Allows learners to measure the pivot-to-bob distance using the supplied or compatible scale.
• Quantitative investigation: Supports timing, averaging, graphing and calculation of gravitational acceleration.
• Small-angle motion study: Demonstrates approximately simple harmonic behaviour at low release angles.
• Repeatable trials: Enables multiple observations to reduce random timing error.
• Curriculum relevance: Connects oscillation, period, frequency, gravity and restoring force.
• Clear experimental limits: Air resistance, pivot friction, large amplitude and reaction time affect results.

Technical Specifications

What’s Included in the Kit

• Pendulum support frame or stand
• Adjustable suspension point
• Pendulum thread or cord
• Pendulum bob or bob set
• Distance-measuring scale
• Stopwatch, timer or sensor
• Experiment instructions

Applications / Uses

• Studying the relationship between pendulum length and time period.
• Calculating period and frequency from timed oscillations.
• Estimating local acceleration due to gravity.
• Investigating the effect of release amplitude on measured period.
• Comparing experimental results with the simple-pendulum equation.
• Teaching simple harmonic motion, restoring force and experimental uncertainty.

How to Use the Distance and Oscillation Pendulum Apparatus

1. Place the apparatus on a stable and level laboratory bench.
2. Set the required pendulum length and measure from the pivot to the bob’s centre.
3. Displace the bob through a small angle, preferably below 15 degrees.
4. Release the bob gently without pushing it.
5. Time 10 or more complete oscillations.
6. Divide the total time by the number of oscillations to obtain the period.
7. Repeat the trial and calculate an average value.
8. Change the length and compare period-squared against length.

Safety and handling: Secure the stand before release. Keep faces and fragile objects outside the swing path. Stop the bob before adjusting its length or changing components.

Care & Maintenance

• Store the thread without knots, twists or excessive tension.
• Inspect the pivot, clamp and stand for looseness before use.
• Clean the scale and bob with a soft, dry cloth.
• Store all small components together in a dry, protected location.

Why Choose STEMAids

STEMAids develops educational science models, physics apparatus, STEM kits and teaching-learning resources for students and educators. Its official website states that products are supported by in-house research, educational expertise and quality assurance. The company also supports customized and bulk institutional projects for buyers in India and abroad. Explore related STEM kits and the Helium Neon Laser.

Frequently Asked Questions

What is a Distance and Oscillation Pendulum Apparatus used for?

It is used to measure pendulum length and oscillation time and to study their mathematical relationship.

How does pendulum length affect its period?

The period increases with the square root of the effective pendulum length. A longer pendulum therefore oscillates more slowly.

Does the mass of the pendulum bob affect the period?

In the ideal simple-pendulum model, the period does not depend on bob mass. Real results can still be influenced by air resistance and pivot friction.

Why should the release angle be small?

A small angle makes the motion closely approximate simple harmonic motion and improves agreement with the standard period equation.

Can this apparatus be used to calculate gravity?

Yes. Students can calculate gravitational acceleration from accurately measured length and period values.

Is a timer included with the apparatus?

The timing equipment was not verified. Confirm whether the supplied model includes a stopwatch, electronic timer or sensor.

Request the confirmed measuring range, bob configuration and included accessories from STEMAids, then browse the Physics Lab Products category.
