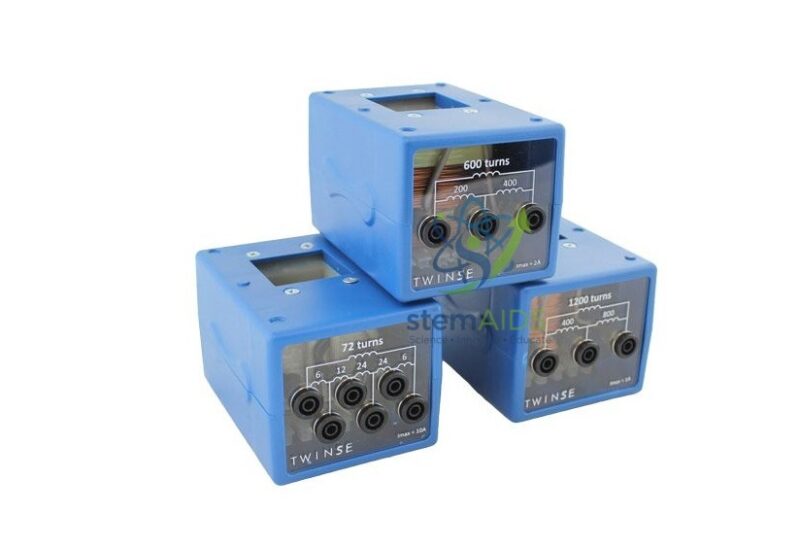

Quick Answer: The Démotransfo essential kit is the core set of boxed coil modules for building and studying a demountable transformer, shown in the product photograph as three blue units with terminal sockets on their faces. It is used to show how a transformer changes voltage and current according to the ratio of the turns on its coils.
What the Essential Kit Teaches
A transformer is two coils linked by a shared iron core. An alternating current in the primary sets up a changing magnetic flux in the core, and that flux induces an alternating voltage in the secondary. For an ideal transformer the voltages are in the ratio of the turns, V_s/V_p = N_s/N_p, and the currents are in the inverse ratio, so the power out roughly equals the power in.
With boxed coils of different numbers of turns, students can set up step-up and step-down arrangements, read the primary and secondary voltages on meters and test the turns-ratio rule themselves. Recording the currents as well lets them calculate efficiency and see that some energy is always lost.
Practicals
- Verifying that the voltage ratio equals the turns ratio
- Building step-up and step-down transformers
- Measuring efficiency from input and output power
- Showing why an alternating supply is needed
Essential Kit or Full Study Case
The essential version concentrates on the coil modules needed for the main transformer practical, which suits schools that already own a laminated core, meters and leads. The Démotransfo study case packs a larger set of parts into a carrying case for departments starting from scratch. Which modules are included, and the turns on each, should be matched to the practicals the school plans to run.
Specifications
| Kit | Boxed transformer coil modules, as pictured |
| Connections | Terminal sockets on each module |
| Principle | Mutual induction and the turns ratio |
| Used with | Laminated core, low-voltage AC supply and meters |
| Module list and turns | Confirm at enquiry |
Care & Handling
- Use only the low-voltage AC supply intended for the modules; never connect a module to the mains
- Switch off before changing connections or opening the core
- Keep sockets clean and free of filings
- Store modules in their packaging so terminals are not knocked
Why Choose LabEquip
The essential kit suits schools adding transformer practicals to an existing electricity bench. LabEquip supplies it along with the U core and other physics lab equipment; ask for the module list through the contact page.
Frequently Asked Questions
Why must the primary be supplied with alternating current?
A transformer works only while the flux in the core is changing. Direct current gives a steady flux after switching on, so nothing is induced in the secondary apart from a brief pulse.
How is a step-down arrangement made?
Use a primary coil with more turns than the secondary. The secondary voltage is then smaller than the primary voltage in the ratio of the turns.
Why is the measured output a little below the ideal value?
Some flux leaks out of the core, the coils have resistance and the core loses energy as heat. These losses make a school transformer less than 100 percent efficient.
Does a step-up transformer create energy?
No. The voltage rises but the current falls, so the output power is never more than the input power.
What else is needed to use the kit?
A laminated iron core to link the coils, a low-voltage AC supply, connecting leads and AC voltmeters or a multimeter.
Is the kit for class practicals or only for demonstration?
It is designed for hands-on work. The boxed modules and sockets let small groups connect and measure the transformer themselves while the teacher controls the AC supply.
