WTB raising grid for tank bottom height 30/60mm

₹658.00

Quick Answer: The WTB raising grid is a perforated stainless steel platform for WTB-series water baths that sets a false tank bottom at 30 mm or 60 mm, as the title states, so shorter vessels sit higher in the water and clear of the heated floor.

What the Raising Grid Changes Inside the Tank

Without a grid, a short beaker or bottle stands on the floor of the tank, nearest the heating and too low to reach easily. The WTB raising grid adds a perforated platform above the floor, so water circulates under and around the vessel and its rim comes up towards the surface where it can be gripped.

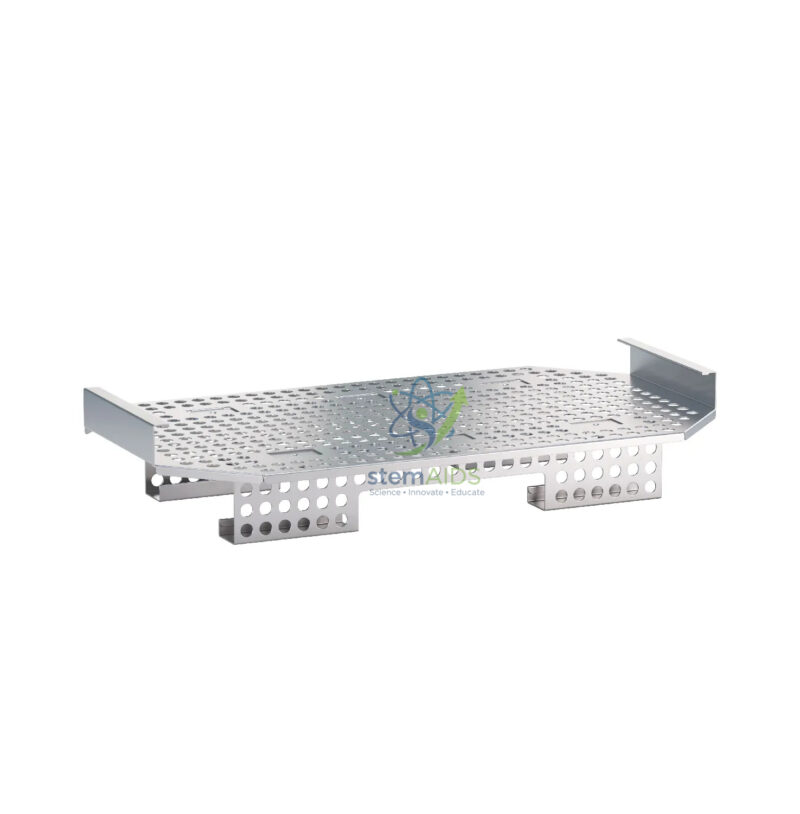

Two working heights are named in the title, 30 mm and 60 mm. The photo shows a perforated deck carried on folded side legs with cut-outs; grids built this way are normally reversed or re-seated to change height. Check which position gives which height before the bath is filled.

Choosing the height is a matter of water depth. The liquid inside the vessel should stay below the bath water line so the whole sample is warmed, while the vessel rim must stay well above it so bath water cannot get in. The grid also keeps glass off the steel floor, which reduces knocks when vessels are lowered in.

Specifications

Type Raising grid (false bottom) for water bath tanks
Designed for WTB-series water baths, as named in the title
Platform height 30 mm or 60 mm above the tank bottom, as titled
Construction Perforated stainless steel deck on folded legs, as pictured
Tank size match Confirm at enquiry

When to Fit the Raising Grid

  • Raising short beakers, bottles and media flasks so their rims sit clear of the water line
  • Keeping vessels off the tank floor so warm water flows beneath them
  • Supporting loose racks or trays at a convenient working height
  • Separating samples from debris or scale that settles on the tank floor

Care & Handling

  • Take the WTB raising grid out whenever the bath is drained and rinse off deposits that collect in the perforations.
  • Descale with a mild descaler made for stainless steel, then rinse thoroughly.
  • Place it in the bath before the water is hot, or wear gloves, because stainless steel passes heat to the hands quickly.
  • Avoid steel wool and chloride-based cleaners, which can mark or pit stainless steel.

Why Choose LabEquip

Labs running WTB-series water baths fit a raising grid when the heights of their vessels change from day to day. LabEquip also lists a stainless steel rack for water bath WTB and other bath accessories in General Lab Products; send your bath model through the contact page so the grid size can be matched.

Frequently Asked Questions

Why are there two heights?

Different vessels need different depths. The 30 mm position suits taller vessels that would otherwise stand too high in the water, while the 60 mm position lifts short beakers and bottles so they are easy to reach and their rims stay above the water line.

Does the grid fit any water bath?

The title names WTB-series baths, so the grid is sized for those tanks. Other baths have different internal dimensions, and a grid that is too small can slide or tip. Match it to the bath model before ordering.

Will the grid slow down heating?

Very little. The perforations let water pass freely, so the space under the platform stays at bath temperature, and vessels on the grid are surrounded by water instead of standing on the floor.

How much water do I need with the grid fitted?

Enough to bring the water level up to the liquid level inside your vessels. Raising the platform leaves less depth above it, so check that the water still covers the sample before switching on.

Can glass be placed directly on the grid?

Yes. Flat-bottomed beakers and bottles stand on the perforated deck. Round flasks need a ring or rack, and light vessels may float as the bath fills, so weight them or fill them first.

How should the grid be cleaned?

Rinse it in warm water with a mild detergent and brush the perforations. Remove limescale with a descaler suitable for stainless steel, then rinse and dry it before storage.
