Retort Stand, Tripod Type

Three-Point Stability: The tripod geometry ensures that all three feet maintain constant contact with the benchtop, even if the surface is slightly irregular.

Heavy-Duty Cast Base: Forged from high-density cast iron or alloy,

₹160.00

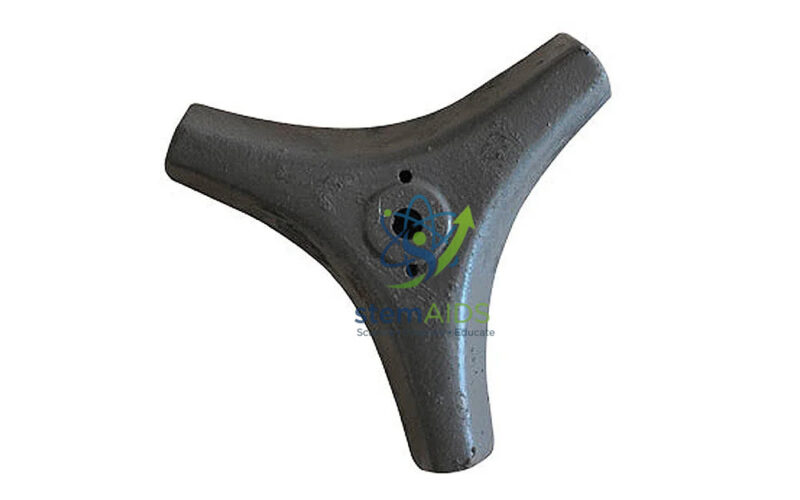

Quick Answer: The Retort Stand, Tripod Type is a tripod retort stand: its base is a three-armed casting with the rod socket in the centre, so it rests on three points. The listing photograph shows a dark grey Y-shaped base; the upright rod fits the central socket and carries clamps, rings and boss heads.

Three Arms, Centre Rod

With the rod in the middle of three evenly spaced arms, a tripod base has no front or back. A clamp can point in any direction and there is always an arm roughly beneath the load. This differs from a rectangular base, where the rod stands at one end and the stand must be turned to put the load over the long side, and from an A-shaped stand, which leaves one side open.

Resting on three points, the base cannot rock, however uneven the bench. That makes it a common choice for tiled benches, outdoor or field use, and set-ups carried from room to room. The gaps between the arms are useful too: a burner, a small hot plate or a beaker can sit between two arms, close under the clamped apparatus.

The photograph shows a cast base with a central boss and a hole for the rod. The metal is not named in the title. Because the arms are narrow, a tripod base covers less area than a plate of the same span, so for heavy loads at a long reach a broad, heavy cast iron rectangular stand may be steadier.

Specifications

Type Retort stand with three-armed (tripod) base
Rod position Central socket (as pictured)
Contact points Three, one at the end of each arm
Finish Dark grey cast base in the listing photograph
Accepts Upright rod with boss heads, clamps and rings
Base metal and arm span Confirm at enquiry

Applications

  • Holding a flask over a burner that sits between two arms
  • Clamps pointing in different directions from one rod, such as a thermometer and a delivery tube
  • Field and outdoor practicals on uneven ground or tables
  • Demonstration benches where apparatus is viewed from all sides

Care & Handling

  • Point the heaviest load along one of the arms of the tripod retort stand, not into the gap between two arms.
  • Keep the rod screwed firmly into the central socket; a loose rod rattles and lets the set-up swing.
  • Stand the burner beside the arms, never underneath the casting itself.

Why Choose LabEquip

Teachers who run demonstrations and field practicals like a base that sits firm on any surface and can be approached from all sides. LabEquip lists the tripod type with its other retort stands in General Lab Products.

Frequently Asked Questions

Why does a tripod base never rock?

Any three points define a flat plane, so a base standing on three feet always rests on all three, even on an uneven surface. A four-cornered base rocks when one corner is not in contact.

Which direction should the clamp point?

Ideally along one of the arms, so the load is above an arm rather than above the gap between two. The central rod means you can choose freely.

Is a tripod base as stable as a rectangular one?

It is steadier on uneven surfaces but covers less area with its narrow arms. For heavy loads at a long reach, a broad, heavy rectangular base can resist tipping better.

Can I put a Bunsen burner between the arms?

Yes, the open gaps are useful for this. Keep the flame clear of the arms and the rod, and let the base cool before moving it.

How is it different from an A-shaped stand?

The tripod base has the rod at the centre of three equal arms. An A-shaped base usually carries the rod towards its point, leaving one side of the rod open for apparatus.

Can the rod be replaced?

The rod fits the central socket, and stand rods are normally threaded into the base, so a bent or short rod can be swapped for another with the same thread.

Last Updated: September 2026
