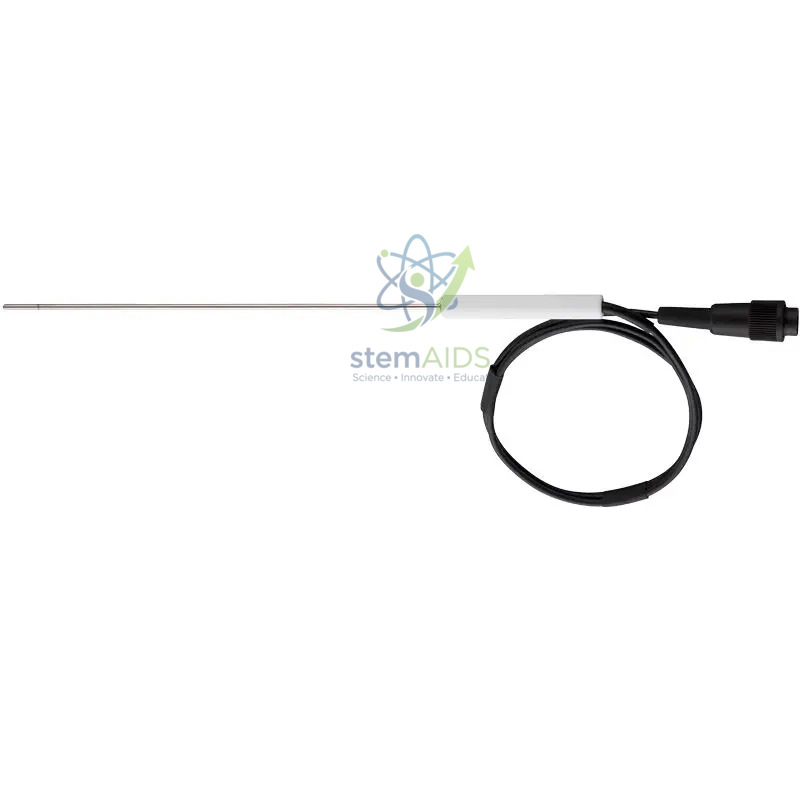

The StemAids PT 1000 Stainless Steel Temperature Probe is a precision laboratory temperature sensor designed for accurate temperature monitoring during heating, stirring, sample preparation and controlled laboratory experiments. It is suitable for use with compatible hotplate magnetic stirrers, heating magnetic stirrers, heating blocks, oil baths, water baths and temperature-control systems.
This Pt1000 probe uses platinum resistance temperature detector technology, where the sensor provides a resistance signal that changes with temperature. The stainless steel probe body helps provide durability, corrosion resistance and reliable performance in routine laboratory environments.
Supplied under the StemAids brand, this temperature probe is ideal for chemistry laboratories, biology laboratories, pharmaceutical labs, research centres, quality control departments, educational institutions and analytical testing laboratories where accurate temperature feedback is required during heating applications.
Important Note: The PT 1000 stainless steel temperature probe is a sensor accessory. It does not heat, stir or display temperature by itself unless connected to a compatible controller, magnetic stirrer, heating unit or temperature display system.
Key Features
- Pt1000 platinum resistance temperature probe for laboratory temperature monitoring
- Stainless steel probe body for durability and chemical resistance
- Suitable for compatible hotplate magnetic stirrers and heating systems
- Useful for real-time sample temperature monitoring
- Supports controlled heating applications when used with compatible controllers
- Suitable for beakers, flasks, heating blocks, water baths and oil bath setups
- Helps improve temperature accuracy compared with plate-only temperature monitoring
- Useful for reagent preparation, solution heating, sample warming and QC testing
- Suitable for educational, research, pharmaceutical and analytical laboratories
- StemAids brand support for institutional laboratory procurement
Product Specifications
| Specification | Details |
|---|---|
| Product Name | PT 1000 Stainless Steel Temperature Probe |
| Brand | StemAids |
| Product Type | Laboratory temperature sensor / RTD probe |
| Sensor Type | Pt1000 platinum resistance temperature detector |
| Nominal Resistance | 1000 ohms at 0°C |
| Probe Material | Stainless steel |
| Typical Measuring Range | Approx. -10°C to 400°C, depending on supplied model and compatible controller |
| Temperature Accuracy | Depends on probe class and connected controller; commonly used for precise external temperature monitoring |
| Output Signal | Resistance output |
| Compatibility | Compatible hotplate magnetic stirrers, heating magnetic stirrers and temperature-control systems with Pt1000 input |
| Recommended Use | Sample temperature monitoring during heating and stirring applications |
| Probe Mounting | Can be used with suitable Pt1000 clamping system, support rod and probe holder |
| Common Application Vessels | Beakers, flasks, reaction vessels, heating blocks, baths and compatible laboratory containers |
| Cleaning Method | Wipe the stainless steel probe after cooling; clean according to chemical compatibility and laboratory SOP |
| Recommended Accessories | Pt1000 clamping system, support rod, boss head, clamp, heating magnetic stirrer and compatible controller |
| Important Note | Exact measuring range, cable length, connector type, probe diameter, probe length and accuracy class should be confirmed from the final supplied datasheet. |
Detailed Product Description
The StemAids PT 1000 Stainless Steel Temperature Probe is designed to measure the actual temperature of a liquid sample during heating and stirring. In many laboratory procedures, the temperature of the hotplate surface may be different from the real temperature of the liquid. A Pt1000 probe helps users monitor the sample temperature more directly.
When connected to a compatible hotplate magnetic stirrer or temperature controller, the probe provides temperature feedback to support more accurate heating control. This is useful for sample warming, reagent preparation, synthesis work, dissolution, buffer preparation, quality testing and educational experiments.
The stainless steel construction makes the probe suitable for routine laboratory use with compatible aqueous solutions, reagents and laboratory media. The probe should be positioned properly inside the sample using a suitable clamping system so that it does not touch the vessel wall, vessel base or rotating magnetic stir bar.
This product is especially useful in laboratories where controlled heating is important, including chemistry labs, pharmaceutical testing labs, research laboratories, QC labs and teaching laboratories.
Applications
- External temperature monitoring for hotplate magnetic stirrers
- Sample temperature control during heating and stirring
- Reagent preparation and solution heating
- Buffer preparation and sample warming
- Temperature monitoring in beakers and flasks
- Heating block temperature measurement
- Oil bath and water bath monitoring, if compatible
- Quality control laboratory testing
- Pharmaceutical and research laboratory workflows
- Educational chemistry and biology practicals
How to Use StemAids PT 1000 Stainless Steel Temperature Probe
- Check compatibility: Confirm that your hotplate magnetic stirrer or controller has a Pt1000 input connection.
- Inspect the probe: Check the stainless steel probe, cable and connector for damage before use.
- Connect the probe: Insert the Pt1000 connector into the compatible temperature input port of the instrument.
- Prepare the vessel: Place the liquid sample and magnetic stir bar inside a suitable beaker, flask or reaction vessel.
- Fix the probe with clamp: Use a Pt1000 clamping system, support rod or probe holder to secure the sensor.
- Position correctly: Immerse the probe tip into the liquid sample at the recommended depth.
- Avoid contact: Ensure the probe does not touch the vessel wall, vessel bottom or rotating magnetic stir bar.
- Start stirring: Begin magnetic stirring at low speed and increase gradually until smooth mixing is achieved.
- Set temperature: Adjust the heating temperature on the compatible controller or hotplate stirrer.
- Monitor reading: Observe the displayed temperature and ensure the probe remains stable during operation.
- Switch off after use: Turn off heating and stirring before removing the probe.
- Clean and store: Allow the probe to cool, wipe it clean and store it safely in a dry place.
Safety Instructions
- Use only with compatible Pt1000 temperature input systems.
- Do not bend, crush or pull the probe cable.
- Do not allow the probe to touch the rotating magnetic stir bar.
- Do not place the probe directly on the vessel bottom during stirring.
- Keep the cable away from hotplates, flames and heated vessels.
- Do not exceed the safe temperature range of the probe or connected controller.
- Use suitable clamps to prevent probe movement during heating.
- Do not use the probe with incompatible corrosive chemicals.
- Wear laboratory PPE such as gloves, goggles and lab coat.
- Allow the probe to cool before cleaning or handling after high-temperature use.
Why Choose StemAids PT 1000 Stainless Steel Temperature Probe?
| Reason | Benefit for Laboratory Users |
|---|---|
| Direct Sample Monitoring | Helps measure liquid temperature more accurately than plate-only temperature readings. |
| Pt1000 RTD Technology | Provides stable resistance-based temperature measurement for laboratory applications. |
| Stainless Steel Body | Offers durability and practical chemical resistance for routine laboratory use. |
| Compatible with Hotplate Stirrers | Useful for heating magnetic stirrer systems with external temperature probe support. |
| Improved Process Control | Supports better temperature feedback during sample heating and stirring. |
| Useful for Multiple Vessels | Can be used with beakers, flasks, baths and heating blocks when compatible. |
| Educational and Research Use | Suitable for schools, colleges, universities, QC labs and research facilities. |
| StemAids Brand Support | Suitable for institutional procurement and scientific laboratory equipment supply. |
SEO Keywords
PT 1000 stainless steel temperature probe, StemAids PT1000 probe, Pt1000 temperature sensor, stainless steel temperature probe, laboratory temperature probe, hotplate magnetic stirrer temperature probe, Pt1000 RTD sensor, external temperature sensor for magnetic stirrer, temperature probe for heating magnetic stirrer, laboratory RTD probe, sample temperature probe, pharmaceutical lab temperature sensor, QC laboratory temperature probe, chemistry lab temperature probe, educational lab equipment.
SEO Meta Title
StemAids PT 1000 Stainless Steel Temperature Probe | Lab RTD Sensor
SEO Meta Description
StemAids PT 1000 Stainless Steel Temperature Probe is a laboratory RTD sensor for accurate sample temperature monitoring with compatible hotplate magnetic stirrers, heating blocks, baths and temperature-control systems.
Google E-E-A-T Focused Content
This product description follows Google E-E-A-T content principles by providing clear product purpose, practical usage guidance, transparent specification notes and safety instructions. The product is correctly described as a Pt1000 temperature probe accessory, not as a standalone heater, stirrer or temperature controller.
The StemAids PT 1000 Stainless Steel Temperature Probe is described for science teachers, laboratory technicians, researchers, QC analysts, pharmaceutical laboratories and procurement officers who need accurate information before purchase. The content focuses on real laboratory applications such as sample temperature monitoring, heating magnetic stirrer control, reagent preparation, solution warming and safe probe handling.
Frequently Asked Questions
1. What is a PT 1000 stainless steel temperature probe used for?
It is used to measure sample temperature during laboratory heating, stirring, reaction monitoring, solution preparation and temperature-controlled experiments.
2. What does Pt1000 mean?
Pt1000 refers to a platinum resistance temperature detector with a nominal resistance of 1000 ohms at 0°C.
3. Does the probe work by itself?
No. The probe must be connected to a compatible temperature controller, hotplate magnetic stirrer or display system with Pt1000 input.
4. What is the typical measuring range?
A common stainless steel Pt1000 laboratory probe may measure approximately -10°C to 400°C, depending on the supplied model and compatible controller.
5. Can it be used with a magnetic stirrer?
Yes. It can be used with compatible hotplate magnetic stirrers or heating magnetic stirrers that support external Pt1000 temperature probes.
6. Why use a Pt1000 probe instead of relying only on hotplate temperature?
A Pt1000 probe measures the sample temperature more directly, while a hotplate reading may only indicate plate temperature.
7. Can it be used in beakers and flasks?
Yes. It can be used in beakers, flasks and suitable reaction vessels when properly positioned with a clamp or probe holder.
8. Is stainless steel suitable for laboratory use?
Stainless steel is commonly used for durable laboratory temperature probes, but chemical compatibility should always be checked before use.
9. What safety precautions should be followed?
Keep the probe cable away from hot surfaces, avoid contact with the magnetic stir bar, do not exceed the rated temperature range and allow the probe to cool before cleaning.
10. Why choose StemAids PT 1000 Stainless Steel Temperature Probe?
It offers durable stainless steel construction, Pt1000 temperature sensing, compatibility with laboratory heating systems and suitability for educational, research, QC and pharmaceutical applications.
