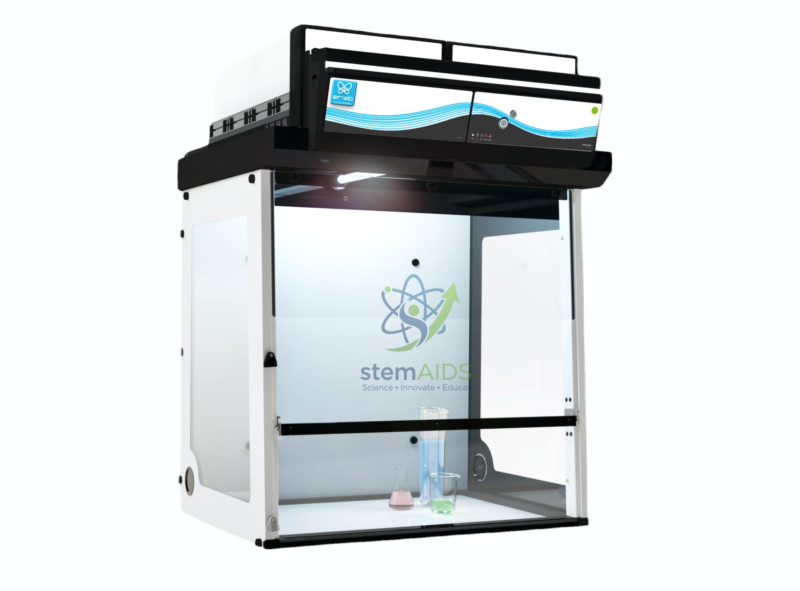

Quick Answer: The filtration hood without connection is a ductless filtration hood: an enclosure with a filter housing on top, as pictured, that is not connected to any exhaust duct. It captures vapours or particles in its filters and returns cleaned air to the laboratory.
Ductless or Ducted: Choosing the Right Hood
A ducted fume cupboard removes contaminated air from the building, so it can deal with a broad range of chemicals and with reactions that release fumes unpredictably. Its cost lies in the installation: ductwork through walls or roof, a fan, make-up air for the room and the building work to fit them. A hood without connection removes that installation work entirely. It needs a bench and a power socket.
The compromise is scope. A ductless filtration hood can only handle substances its filters retain, and only up to the filters’ capacity. It therefore suits labs whose chemical work is predictable: the same reagents, in similar quantities, week after week. Labs with varied or unknown chemistry should keep a ducted cupboard available, such as a laboratory fume cupboard with extraction fan.
When deciding, list the chemicals, the largest volume open at one time and the hours of use per week. Those three facts decide whether this type of hood is appropriate and which filters it needs, and they are what LabEquip will ask for when you get in touch through the contact page.
Suitable Applications
- Routine reagent preparation in labs with no ductwork
- Schools adding fume control to a prep room without building work
- Odour control around formalin-preserved specimens during dissection preparation, with a suitable filter
- Powder handling with a particle filter stage
Planning & Care
- Decide the filter type from a written chemical list before first use
- Do not introduce chemicals outside that list without checking filter suitability
- Keep the front opening clear of bottles and equipment that block airflow
- Have the inflow checked periodically with an anemometer and record the results
Specifications
| Product | Ductless filtration hood |
| Connection | None to an exhaust duct; air returns to the room |
| As pictured | Enclosure with front opening, clear side panels and top filter housing |
| Needs | Bench space and a power supply |
| Model size and filter configuration | Confirm at enquiry |
Why Choose LabEquip
Buyers range from school science departments to small analytical labs that cannot add ducting. LabEquip’s general lab products range includes several models of this type, among them the 321 Midcap, so the hood size can be matched to the bench and the work.
Frequently Asked Questions
What does a ductless hood need for installation?
A stable bench and a power supply. There is no ducting or external fan, and because the hood returns air to the room, it does not remove heated or cooled air from the building.
Which chemicals are unsuitable for a filtration hood?
Substances the filter cannot retain, unknown mixtures, large volumes and reactions that release gas or heat quickly. Some low-boiling gases are poorly held by carbon filters, so check each chemical against the filter supplier’s list.
How is the airflow of a filtration hood checked?
Measure the inflow speed at several points across the front opening with an anemometer and compare it with the value in the manual. Record the readings so a fall in performance can be seen over time.
Can formalin work be done in this hood?
Yes, if a filter designed for formaldehyde is fitted and the quantities are within its capacity. Formaldehyde is poorly held by plain activated carbon, so the correct filter type matters.
Does the hood remove heat from the lab?
No. Air is returned to the room, so heat from equipment inside stays in the lab. A ducted cupboard, by contrast, exhausts warm air outside along with the fumes.
Can the hood be moved after installation?
Yes. With no duct connection, it can go to another bench or room. Recheck the airflow, and the filter’s suitability for the work done in the new location, after moving it.
