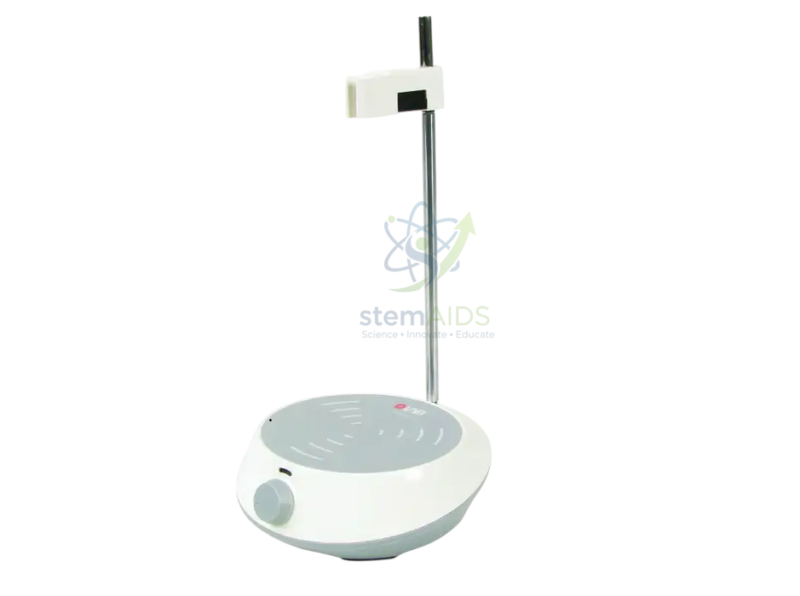

DLAB ECOSTIR magnetic stirrer

The StemAids DLAB EcoStir Magnetic Stirrer is a compact, economical, and reliable non-heating magnetic stirrer designed for routine liquid mixing in laboratories, classrooms, quality-control labs, research environments, and STEM learning spaces.

With a maximum stirring capacity of 1.5 L and a speed range of 300–2000 rpm, the EcoStir is ideal for chemical analysis, biology reagent mixing, solution preparation, sample handling, water testing, and general laboratory experiments.

Product Description

The StemAids DLAB EcoStir Magnetic Stirrer is supplied as a StemAids-listed laboratory product based on the DLAB EcoStir model reference. It is designed for users who need a simple, quiet, and durable stirring solution without a heating function.

The EcoStir uses a maintenance-free brushless DC motor and strong rare-earth magnets to provide stable stirring performance. Its PET work plate offers good chemical resistance for routine lab use, while the compact body saves valuable bench space.

A key advantage of the EcoStir is its practical probe-support design. The shaft can be fitted with a pH sensor or other compatible probes, making it useful for electrochemistry measurements, water and environmental monitoring, liquid culture mixing, food analysis, drug testing, and routine sample preparation.

Key Features

• Compact non-heating magnetic stirrer for laboratory use
• Maximum stirring capacity up to 1.5 L of water
• Stepless speed regulation from 300 to 2000 rpm
• Maintenance-free brushless DC motor
• Rare-earth magnets for powerful and stable stirring
• Quiet and vibration-free operation
• PET top plate for chemical-resistant performance
• Shaft can support a pH sensor or other compatible probes
• IP21 protection rating for routine laboratory use
• Lightweight 0.3 kg design for easy movement and storage
• Suitable for schools, colleges, research labs, QC labs, and water testing labs

Product Specifications

Product Name: DLAB EcoStir Magnetic Stirrer
Brand / Supplier: StemAids
Manufacturer Model Reference: DLAB EcoStir
Manufacturer: DLAB Scientific
Product Type: Economical non-heating magnetic stirrer
Work Plate Dimension: Ø120 mm
Work Plate Material: PET
Motor Type: Brushless DC motor
Motor Output Power: 1.2 W
Power: 7.2 W
Voltage: 100–120 V / 200–240 V, 50/60 Hz; confirm regional version before use
Stirring Positions: 1
Maximum Stirring Quantity: 1.5 L water
Maximum Magnetic Stir Bar Length: 40 mm
Speed Range: 300–2000 rpm
Speed Setting: Scale / analog control
Protection Class: IP21
Dimensions: 150 × 145 × 50 mm
Weight: 0.3 kg
Permissible Ambient Conditions: 5–40°C, up to 80% relative humidity
Heating Function: No heating function
Recommended Use: Solution preparation, reagent mixing, sample handling, chemical analysis, biology reagent mixing, water testing, electrochemistry support, and educational lab experiments

Accessories

Typical / Commonly Listed Accessories:

• Power adapter
• Shaft / rod for probe support
• Holder or clamp for probes

Recommended Accessories:

• PTFE-coated magnetic stir bars up to 40 mm
• pH electrode or compatible sensor, if required
• Stable flat-bottom beakers or flasks
• Laboratory cleaning cloth
• Suitable sample vessels for low to medium viscosity liquids

How to Use

1. Place the EcoStir magnetic stirrer on a clean, dry, flat, and stable laboratory bench.
2. Connect the power adapter or power cable according to the supplied model.
3. Pour the liquid sample into a suitable flat-bottom beaker, flask, or vessel.
4. Do not exceed the recommended 1.5 L stirring capacity.
5. Place a clean PTFE-coated magnetic stir bar into the liquid.
6. Put the vessel at the center of the PET work plate.
7. Start with the speed control at the lowest setting.
8. Gradually increase the speed until stable mixing is achieved.
9. Use the rod and holder to position a pH probe or compatible sensor if required.
10. Avoid excessive speed that may cause splashing, vortex instability, or stir-bar jumping.
11. After use, reduce the speed, switch off the stirrer, remove the vessel, and clean any spills immediately.
12. Store the unit in a clean, dry place away from moisture, corrosive vapors, and excessive heat.

Why Choose StemAids DLAB EcoStir Magnetic Stirrer?

The StemAids DLAB EcoStir Magnetic Stirrer is a practical choice for laboratories that need a compact, quiet, and cost-effective magnetic stirrer for daily use. Its simple analog speed control makes it easy for students and lab staff to operate, while its brushless DC motor and PET work plate support reliable routine performance.

StemAids presents this DLAB EcoStir model for educational, research, and laboratory users who need clear product information, safe selection, and dependable lab equipment for everyday mixing tasks.

Safety and Care Instructions

Use the EcoStir only in a suitable laboratory or supervised educational environment. This model does not include heating, so do not use it as a hotplate. Keep the unit and power connections dry. Do not immerse the stirrer in water. Use stable vessels and compatible stir bars. Clean spills immediately using appropriate laboratory safety procedures. Disconnect the power before cleaning or storing the unit.

FAQ

Q1. What is the StemAids DLAB EcoStir Magnetic Stirrer used for?
It is used for liquid mixing, reagent preparation, sample handling, biology reagent mixing, chemical analysis, water testing, and routine laboratory experiments.

Q2. What is the maximum stirring capacity?
The maximum stirring capacity is 1.5 L of water.

Q3. What is the speed range of the DLAB EcoStir?
The speed range is 300–2000 rpm with stepless analog speed regulation.

Q4. Does the EcoStir have a heating function?
No. The EcoStir is a non-heating magnetic stirrer designed for stirring-only applications.

Q5. What is the work plate made from?
The work plate is made from PET, which provides good chemical resistance for routine lab use.

Q6. What motor does the EcoStir use?
It uses a maintenance-free brushless DC motor.

Q7. Can it hold a pH probe?
Yes. The shaft can be fitted with a pH sensor or other compatible probes, depending on the setup and accessories supplied.

Q8. What is the maximum stir bar length?
The maximum magnetic stir bar length is commonly listed as 40 mm.

Q9. Is it suitable for schools and colleges?
Yes. It is suitable for school laboratories, college labs, STEM classrooms, and supervised practical sessions.

Q10. What should I check before ordering?
Check the voltage version, plug type, included accessories, stir bar availability, and whether the rod and holder are included in the supplied package.
